PE7392-2

Overview

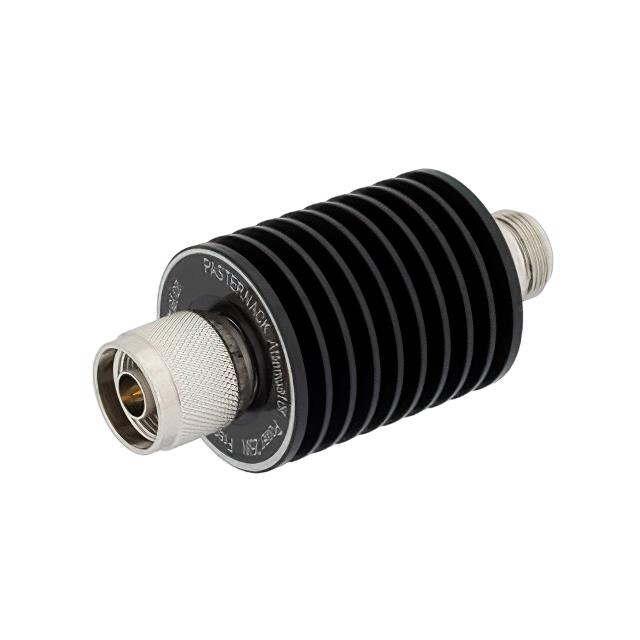

The PE7392-2 is a fixed attenuator from Pasternack featuring N-type male to N-type female connectors. It provides an attenuation value of 2 dB with a characteristic impedance of 50 Ohms. The device operates within a frequency range of 0 Hz to 4 GHz and supports a maximum power handling capacity of 25 Watts. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability during operation.

Feature Summary

• Fixed 2 dB attenuation for signal level control
• N-type male to N-type female connector interface
• Black anodized aluminum heatsink body construction
• Rated for 25 Watts power handling up to 4 GHz

Applications

• RF signal path attenuation
• Test and measurement equipment
• Communication systems
• Signal conditioning networks

Procurement Notes

Verify the specific part number PE7392-2 against official manufacturer documentation to confirm the 2 dB attenuation rating and 25 Watt power handling specifications. Ensure compatibility with N-type connectors in the target application environment. Check for any RoHS compliance requirements if applicable to the project constraints.

Selection Notes

Select this component when a precise 2 dB reduction in RF signal strength is required within the 0 Hz to 4 GHz bandwidth. The 50 Ohm impedance matches standard RF systems. The heatsink design aids in dissipating heat generated by the 25 Watt power rating, making it suitable for continuous high-power applications.

Part Context

This model belongs to Pasternack's series of fixed coaxial attenuators designed for reliable performance in RF environments. The PE7392-2 variant specifically addresses low-loss attenuation needs using robust N-type connectors and durable aluminum housing for industrial and commercial use cases.

Replacement Considerations

Compatible substitutes include other 2 dB fixed attenuators with N-type connectors rated for similar power and frequency ranges. Verify that alternative parts maintain the 50 Ohm impedance and physical connector gender compatibility.
