PE7392-20

Overview

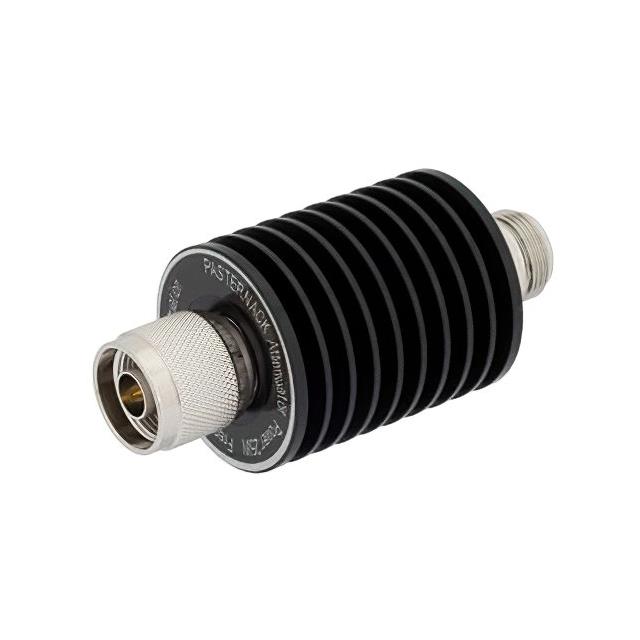

The Pasternack PE7392-20 is a fixed attenuator designed for radio frequency applications. It provides an attenuation value of 20 dB across a frequency range of 0 Hz to 4 GHz. The component features Type N connectors, with a male gender on one side and a female gender on the other. It is rated for a maximum power handling capacity of 25 watts. The device operates within an impedance system of 50 Ohms. The housing utilizes black anodized construction for durability.

Feature Summary

• Provides precise 20 dB signal reduction
• Operates from DC up to 4 GHz
• Supports 25 watts power handling
• Features Type N male-to-female interface

Applications

• RF signal level adjustment in test equipment
• Impedance matching in microwave circuits
• Signal attenuation in communication systems

Procurement Notes

Verify the specific connector gender configuration and power rating against application requirements before procurement. Confirm that the operating frequency does not exceed the 4 GHz upper limit. Ensure the 25-watt power handling capability aligns with the system's maximum signal strength to prevent component damage. Check for any environmental constraints regarding the black anodized finish.

Selection Notes

Select this model when a fixed 20 dB attenuation is required between 0 Hz and 4 GHz. The Type N interface suits applications needing robust connections. Consider the 25-watt power rating for high-power RF paths. Verify compatibility with existing 50 Ohm system impedance. This component is suitable for environments requiring stable attenuation without variable adjustment capabilities.

Part Context

This component belongs to the category of fixed attenuators manufactured by Pasternack. It serves as a passive RF device used to reduce signal amplitude without distortion. The Type N connector type indicates suitability for frequencies up to several gigahertz. The 20 dB value represents a significant signal reduction factor. The black anodized finish provides corrosion resistance and thermal management properties typical for such hardware.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer resources for equivalent models with identical specifications or compatible interfaces.
