PE7392-30

Overview

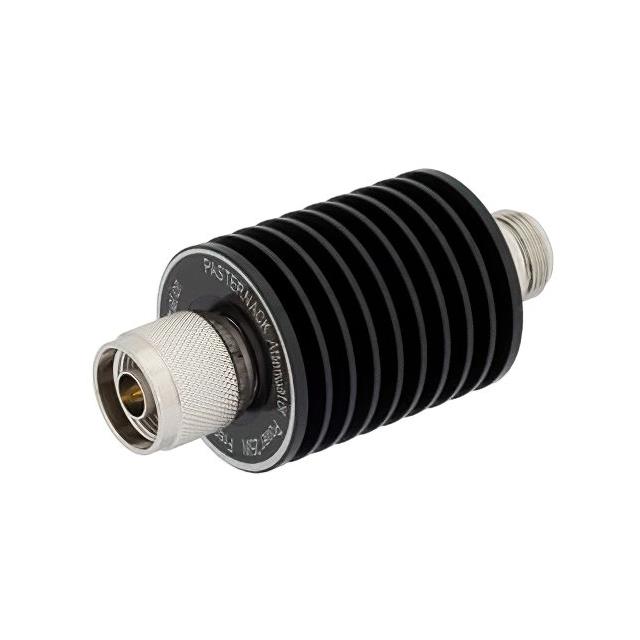

The Pasternack PE7392-30 is a fixed attenuator module designed for radio frequency applications. It provides an attenuation value of 30 dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of 0 Hz to 4 GHz. It features Type N male-to-female connectors and is rated for a maximum power handling capacity of 25 Watts. The housing is constructed from black anodized aluminum, serving as a heatsink body.

Feature Summary

• Fixed 30 dB attenuation performance
• Type N male to female connector interface
• Black anodized aluminum heatsink housing

Applications

• RF signal level reduction in test and measurement setups
• Attenuation in wireless communication systems up to 4 GHz
• Impedance matching in 50 Ohm RF circuits

Procurement Notes

Verify the specific part number against official Pasternack documentation to confirm the 30 dB attenuation rating and 25 Watt power handling specifications. Ensure compatibility with Type N connectors and 50 Ohm system impedance requirements before integration into RF designs.

Selection Notes

Select this component when a precise 30 dB attenuation is required within the DC to 4 GHz bandwidth. Consider the 25 Watt power rating and Type N interface for high-power RF environments. Verify that the black anodized aluminum construction meets thermal management needs for the intended application.

Part Context

This model belongs to the Pasternack series of fixed attenuators utilizing Type N connectors. Similar variants include the PE7392-10 (10 dB) and PE7392-6 (6 dB), offering different attenuation levels within the same 0-4 GHz frequency range and 25 Watt power rating framework.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
