PE7394-2

Overview

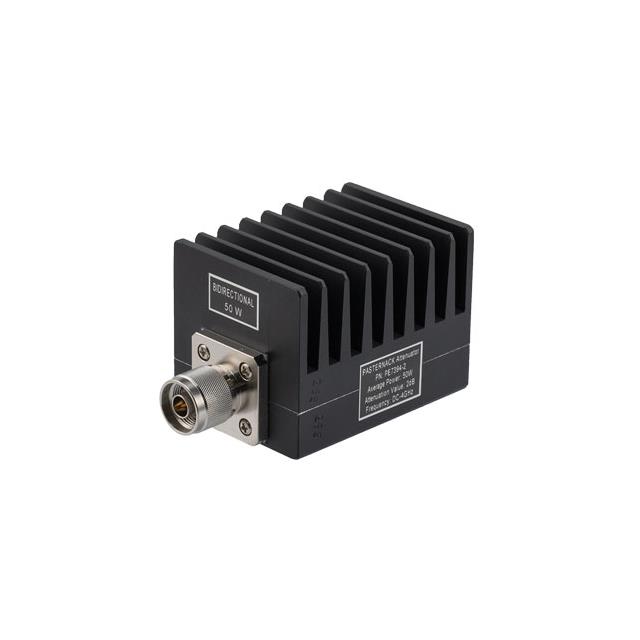

The Pasternack PE7394-2 is a 2 dB fixed attenuator designed for RF applications up to 4 GHz. It features Type N male-to-female connectors and utilizes an aluminum heatsink body with black anodized finish. The component is rated for 50 Watts of power handling. This unit ensures signal attenuation within the specified frequency range while maintaining impedance characteristics suitable for standard RF systems.

Feature Summary

• Fixed 2 dB attenuation value
• Type N male to female connector interface
• Aluminum heatsink construction with black anodized finish
• Rated for operation up to 4 GHz

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between RF components
• Signal conditioning in wireless communication systems
• Attenuation in microwave circuit designs

Procurement Notes

Verify the specific part number PE7394-2 against official Pasternack documentation to confirm the 2 dB attenuation value, 50 Watt power rating, and 4 GHz frequency limit. Ensure the Type N male-to-female configuration matches system requirements. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a precise 2 dB attenuation is required at frequencies up to 4 GHz. The aluminum heatsink design aids in thermal management for continuous wave power levels up to 50 Watts. Consider the physical size and mounting requirements associated with the bulkhead or panel mount style typical for this series.

Part Context

This model belongs to the Pasternack Type N fixed attenuator series, which includes various attenuation values such as 6 dB, 10 dB, and 30 dB options. These components share similar construction materials and connector types but differ in their specific attenuation ratings and internal resistive elements.

Replacement Considerations

Compatible substitutes include other 2 dB fixed attenuators with Type N connectors rated for 4 GHz and 50 Watts. Verify that alternative parts maintain the same impedance (typically 50 Ohms) and power handling capabilities to ensure system performance integrity.
