PE7394-30

Overview

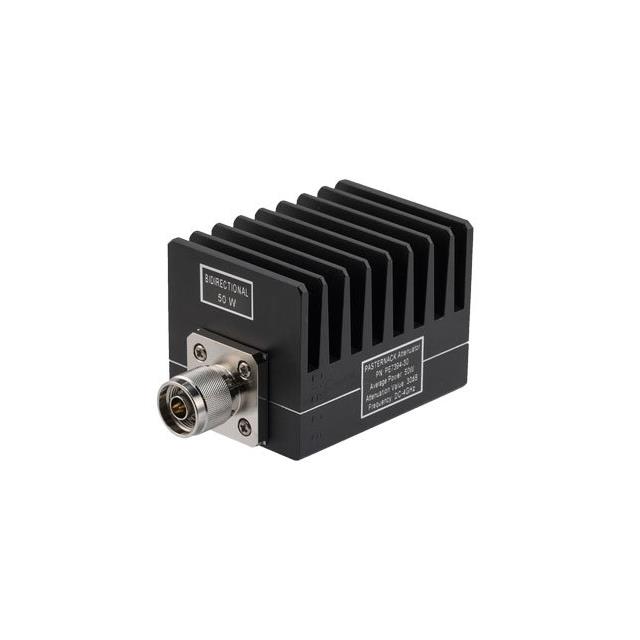

The PE7394-30 is a fixed attenuator manufactured by Pasternack, designed for RF applications up to 3 GHz. It features N male to N female connectors and utilizes a black anodized aluminum heatsink body. The device provides a nominal attenuation of 30 dB with a maximum power rating of 50 watts. It maintains a 50-ohm impedance and exhibits a VSWR of 1.15:1. The unit operates within a temperature range of -55°C to +125°C.

Feature Summary

• Black anodized aluminum heatsink body for thermal management
• N male to N female connector configuration
• Rated for 50 watts power handling up to 3 GHz

Applications

• RF signal level reduction in test and measurement setups
• Attenuation in wireless communication systems
• Protection of sensitive receiver inputs from high power signals

Procurement Notes

Verify the specific datasheet version for the PE7394-30 to confirm mechanical dimensions and detailed electrical performance curves. Ensure compatibility with system operating frequencies up to 3 GHz and power levels not exceeding 50 watts. Confirm connector gender and interface standards match the application requirements before integration.

Selection Notes

Select this component when a fixed 30 dB attenuation is required at N-type interfaces. Consider the 50-watt power rating and 3 GHz frequency limit against system specifications. The aluminum heatsink design supports higher power dissipation compared to non-heatsink variants. Verify environmental temperature ranges align with operational conditions.

Part Context

This model belongs to Pasternack's line of fixed attenuators, specifically utilizing N-type connectors. It serves as a passive RF component for precise signal control. The product is distinct from variable attenuators and other connector types within the manufacturer's portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
