PE7394-6

Overview

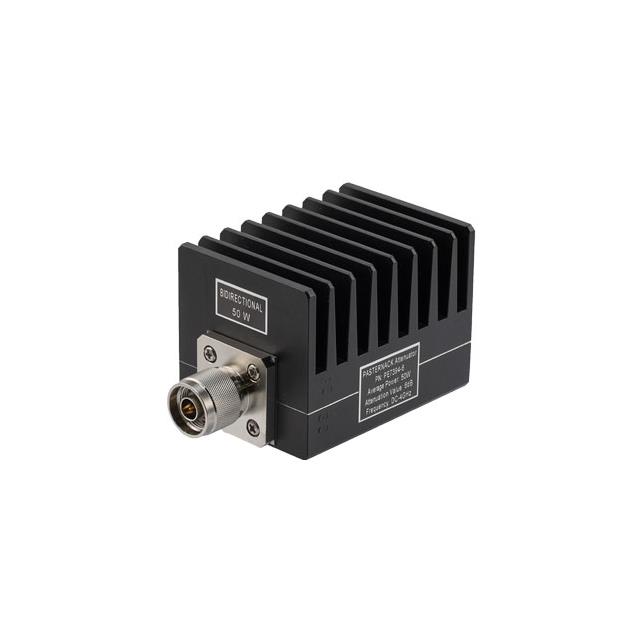

The Pasternack PE7394-6 is a fixed RF attenuator designed for N-type coaxial systems. It provides a nominal attenuation of 6 dB across its operational frequency range. The device features an N male connector on one side and an N female connector on the other, facilitating direct integration into standard RF test setups and signal chains. Constructed with an aluminum heatsink body finished in black anodized coating, it ensures thermal stability during operation. The unit is rated to handle up to 50 watts of power at frequencies up to 4 GHz, making it suitable for high-power applications requiring precise signal reduction.

Feature Summary

• Fixed 6 dB attenuation value for consistent signal level control
• Aluminum heatsink body with black anodized finish for thermal management
• N male to N female interface configuration for standard coaxial connectivity

Applications

• RF signal chain attenuation in test and measurement equipment
• Signal level adjustment in wireless communication systems
• Impedance matching and power reduction in antenna feed lines

Procurement Notes

Verify the specific datasheet version for the PE7394-6 to confirm current electrical tolerances and mechanical dimensions. Ensure that the operating environment does not exceed the specified 50-watt power rating or 4 GHz frequency limit. Check for any RoHS compliance documentation if required by your manufacturing standards. Confirm connector gender and mating compatibility with existing cable assemblies before finalizing procurement orders.

Selection Notes

Select the PE7394-6 when a fixed 6 dB loss is required in an N-type system. Consider the 50-watt power handling capability for high-power applications. Compare against other attenuation values (e.g., PE7394-10 for 10 dB) if different signal reduction levels are needed. Ensure the N-type interface matches the surrounding components. Evaluate thermal requirements based on the aluminum heatsink design.

Part Context

This component belongs to Pasternack's series of fixed RF attenuators, which includes various attenuation values such as 6 dB, 10 dB, and 30 dB models like the PE7394-6, PE7394-10, and PE7394-30. These devices are part of a standardized line offering N-type connectors and aluminum heatsink bodies. The series is designed for reliable performance in RF environments requiring precise, passive signal attenuation without active components.

Replacement Considerations
