PE7395-0

Overview

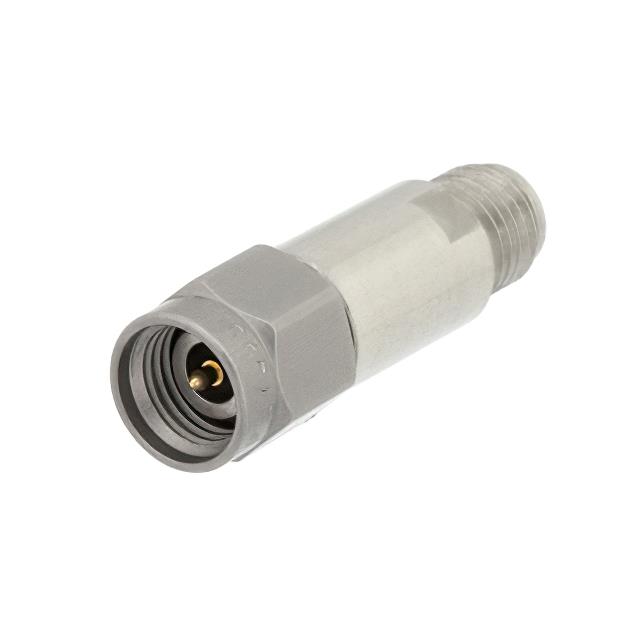

The Pasternack PE7395-0 is a fixed 0 dB attenuator featuring an in-line, resistive PI pad design. It utilizes 2.92mm connectors with male gender on side 1 and female gender on side 2. The coaxial 50-ohm component is rated for operation up to 40 GHz. The unit features passivated construction suitable for high-frequency signal integrity.

Feature Summary

• In-line resistive PI attenuator pad design
• Passivated construction for durability
• 50-ohm coaxial impedance

Applications

• High-frequency signal attenuation control
• RF test and measurement setups
• Microwave circuit integration

Procurement Notes

Verify the specific connector gender configuration matches the system requirements, ensuring side 1 is male and side 2 is female. Confirm that the 40 GHz frequency rating aligns with the operational bandwidth needs. Check for passivation specifications if environmental resistance is required. Ensure the 50-ohm impedance is compatible with existing transmission lines.

Selection Notes

Select this model when zero insertion loss is required while maintaining mechanical interface standards. The 2.92mm connector type supports higher frequencies than SMA alternatives. Consider the passivated finish for long-term reliability in demanding environments. Verify compatibility with mating connectors before integration into the RF chain.

Part Context

This component belongs to Pasternack's fixed attenuator series, specifically designed for precise signal level management without introducing significant reflection. The 0 dB value indicates it serves primarily as a mechanical adapter or buffer while maintaining strict impedance matching and frequency performance up to 40 GHz.

Replacement Considerations

PE7395-2, PE7395-5, PE7395-6, PE7395-10, PE7395-20 are part of the same family but offer different attenuation values.
