PE8022

Overview

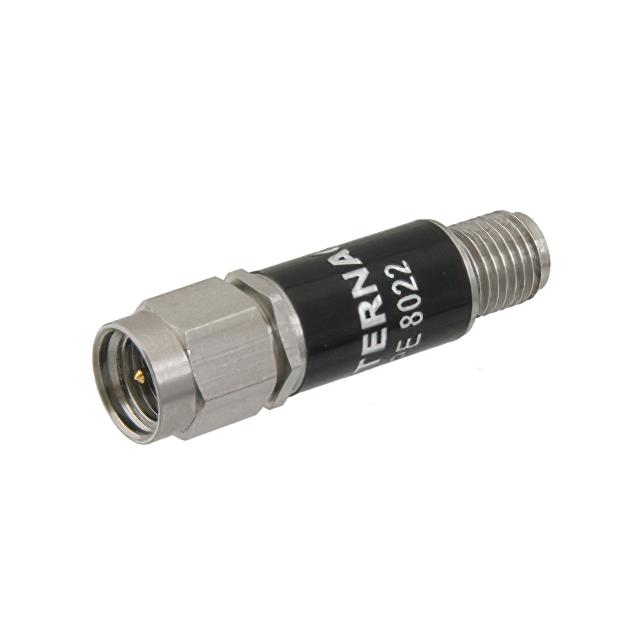

The Pasternack PE8022 is a high-power RF limiter designed for general-purpose applications within the 2GHz to 18GHz frequency range. It features SMA connectors and supports a peak power handling capacity of 100W. The device exhibits a maximum insertion loss of 2.5 dB and achieves a recovery time of 20 ns. It operates reliably across an extended temperature range from -55°C to 90°C. The component utilizes a base-mount installation type with an SMA single-row module package, ensuring robust performance in demanding RF environments.

Feature Summary

• Provides high-power signal limiting protection for RF circuits
• Ensures rapid signal recovery after power events
• Maintains low signal attenuation during normal operation

Applications

• High-power RF system protection
• Receiver front-end safeguarding
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version before integration, as specifications may vary by revision. Confirm that the SMA connector interface matches the system requirements. Ensure the operating temperature range aligns with the environmental conditions of the intended application. Check for any recent product change notices or obsolescence updates from the manufacturer prior to finalizing procurement decisions.

Selection Notes

Select this component when a wide bandwidth covering 2GHz to 18GHz is required alongside high peak power handling. Consider the 2.5 dB insertion loss impact on system gain budget. Evaluate the base-mount form factor against available space constraints. Verify compatibility with the SMA interface standard used in the existing RF chain architecture.

Part Context

This part belongs to the Pasternack RF IC Limiter category, specifically engineered for general-purpose high-power applications. It serves as a protective element within radio frequency systems, distinguishing itself through its broad frequency coverage and robust power handling capabilities compared to lower-power alternatives.

Replacement Considerations

No public confirmed substitute part numbers are documented.
