PE8023

Overview

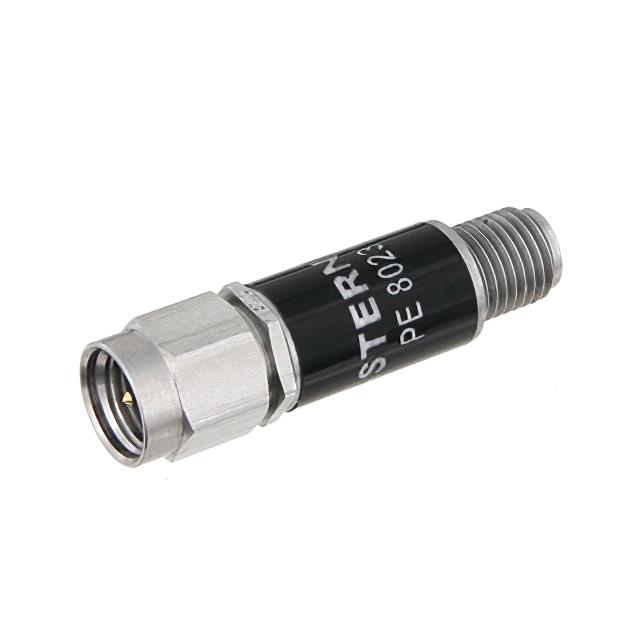

The Pasternack PE8023 is an SMA PIN-PIN limiter designed for RF and wireless applications. It supports a peak power of 100W with a maximum insertion loss of 1.2 dB. The operational frequency range spans from 4 GHz to 8 GHz, featuring a flat leakage of 16 dBm. Recovery time is specified at 20 ns. The device operates within a temperature range of -55°C to 125°C.

Feature Summary

• Utilizes SMA connector interface for integration
• Employs PIN diode limiting technology
• Provides high peak power handling capability

Applications

• RF signal protection circuits
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the PE8023 to confirm current manufacturing status and compliance details. Ensure that the SMA connector type matches the system requirements. Check for any updates regarding the operational temperature limits or recovery time specifications before finalizing procurement decisions.

Selection Notes

Select this component when a robust limiter is required for frequencies between 4 GHz and 8 GHz. Consider the 100W peak power rating and 20 ns recovery time for high-speed signal protection needs. Evaluate the -55°C to 125°C operating range against environmental conditions. Compare insertion loss characteristics with other available options to ensure signal integrity.

Part Context

This part belongs to the Pasternack RF and Wireless product line. It serves as a protective component within coaxial transmission lines. The SMA interface ensures compatibility with standard RF infrastructure. It functions as a passive device to safeguard sensitive downstream components from excessive power levels.

FAQ

What is the recovery time of the PE8023?

The recovery time is 20 ns.

What is the maximum insertion loss?

The maximum insertion loss is 1.2 dB.
