Product Detailed Parameters
- Description：High Power Limiter, SMA, 100W Pe
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Limiter
- Frequency：7GHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

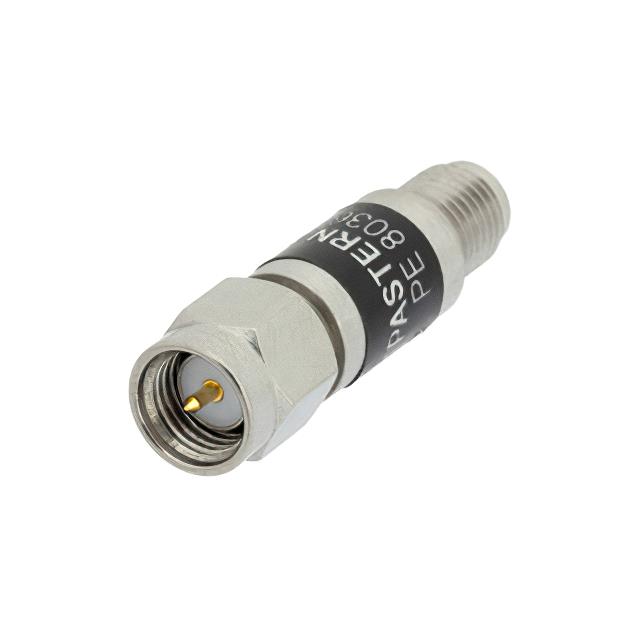

The PE8036 is a high-power signal limiter manufactured by Pasternack, designed for RF applications between 7 GHz and 12 GHz. It features an SMA interface and handles a peak power of 100W with a recovery time of 200 microseconds. The device exhibits a flat leakage specification of 16 dBm, ensuring effective signal protection in sensitive systems.
Feature Summary
- Provides reliable signal conditioning through high-power limiting capabilities
- Ensures system protection via rapid recovery characteristics after power events
- Maintains consistent performance with flat leakage specifications across the operating band
Applications
- Embedded systems requiring RF signal protection
- Industrial automation equipment with sensitive RF components
- Electronics manufacturing testing environments
Procurement Notes
Verify the specific datasheet version when ordering to ensure compatibility with current design requirements. Confirm that the SMA interface matches your system's connector type. Check for any recent updates to the recovery time or leakage specifications in official documentation before finalizing procurement decisions.
Selection Notes
Select this component when operating within the 7 GHz to 12 GHz frequency range. Ensure the 100W peak power rating aligns with your system's maximum expected input levels. Consider the 200 microsecond recovery time for applications requiring quick re-engagement after limiting events. Verify that the 16 dBm leakage level meets your system's noise floor requirements.
Part Context
This part belongs to Pasternack's signal conditioning portfolio, specifically focusing on high-power limiters. It complements other RF components like isolators and cable assemblies by providing critical protection against over-power conditions in microwave and millimeter-wave circuits.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential alternatives if this specific model becomes unavailable.
