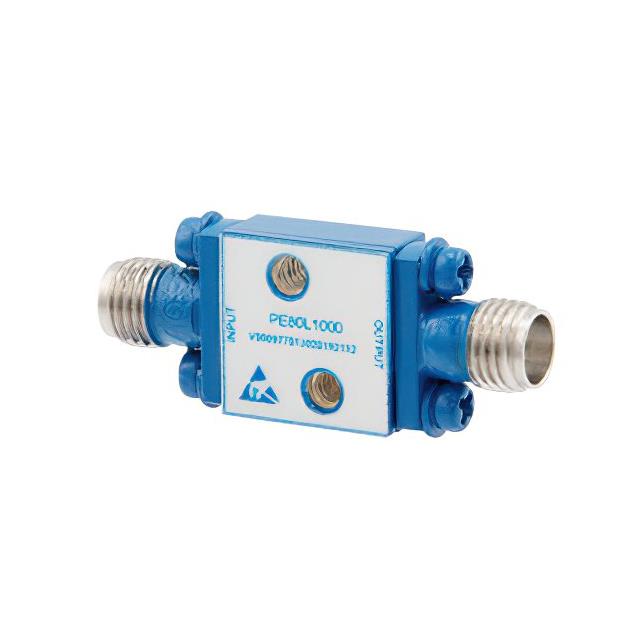

PE80L1000

Overview

The PE80L1000 is a high power limiter manufactured by Pasternack, designed for signal conditioning applications. It operates within a frequency range of 500 MHz to 18 GHz and utilizes an SMA connector interface. The device handles a peak power capacity of 100 Watts with a recovery time of 10 nanoseconds. It maintains a flat leakage level of 14 dBm during operation. This component belongs to the High Power Limiters series and is packaged in bulk.

Feature Summary

• Provides high power limiting functionality across a wide microwave frequency spectrum
• Features rapid recovery time for continuous signal protection
• Maintains consistent leakage performance levels during activation

Applications

• Microwave system protection
• Signal conditioning circuits
• High power RF transmission lines

Procurement Notes

Verify the specific SMA connector gender and electrical tolerances against the official Pasternack datasheet before integration. Confirm that the 100W peak power rating aligns with your system's maximum transient requirements. Ensure the 10 ns recovery specification meets the timing constraints of your application environment. Cross-reference the 14 dBm leakage value with your sensitivity thresholds.

Selection Notes

Select this component when a broadband limiter covering 500 MHz to 18 GHz is required. Consider the SMA interface compatibility with existing board layouts. Evaluate the 100W peak handling capability against potential surge conditions. The 10 ns recovery speed is critical for applications requiring fast re-engagement after limiting events. Verify thermal management needs for sustained high-power operations.

Part Context

This part belongs to Pasternack's High Power Limiters series, which focuses on protecting sensitive downstream components from excessive RF energy. The PE80L1000 specifically addresses broadband applications where standard limiters may not cover the full 18 GHz range. It serves as a passive signal conditioning element within larger RF test or communication systems.

Replacement Considerations

Consult the official Pasternack documentation for direct cross-references. No public substitute part numbers are confirmed in the provided data.
