PE80L1001

Overview

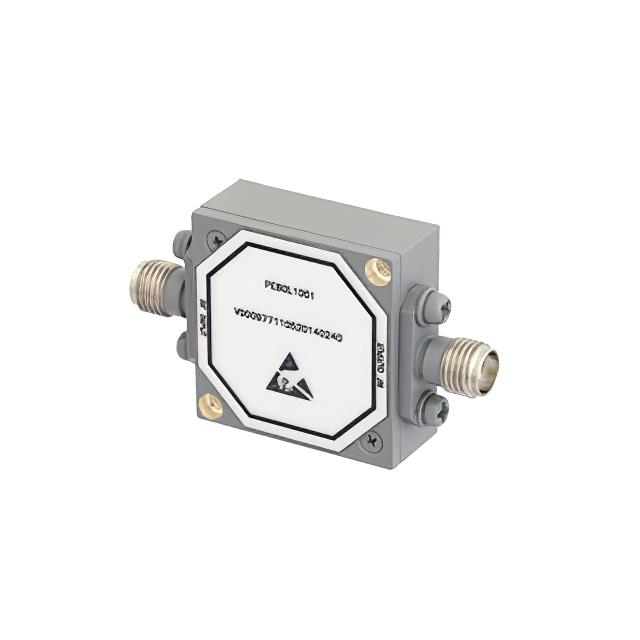

The PE80L1001 is a high-power RF limiter manufactured by Pasternack, designed for signal conditioning in wireless and RF integrated circuit applications. It operates within a frequency range of 2 GHz to 8 GHz and utilizes an SMA connector interface. The device provides protection against high power levels, supporting up to 100W peak power with a 40 ns recovery time. It features a CW flat leakage specification of 13 dBm (0.02 W) and maintains a typical insertion loss of 1 dB. The unit functions reliably across a temperature range of -55°C to +85°C.

Feature Summary

• Provides high power limiting capability with 100W peak power handling
• Ensures signal integrity through low 1 dB typical insertion loss
• Features fast 40 ns recovery time for rapid signal restoration

Applications

• RF signal conditioning modules
• Wireless communication system protection
• High power transmitter output stages

Procurement Notes

Verify the specific SMA connector configuration and inline module packaging details directly with the manufacturer or authorized distributors before procurement. Confirm that the operational temperature range and power specifications align with your system requirements. Ensure compatibility with existing RF infrastructure interfaces.

Selection Notes

Select this component when high power protection is required within the 2 to 8 GHz frequency band. Consider the 100W peak power rating and 40 ns recovery speed for applications demanding rapid signal restoration. Evaluate the 13 dBm flat leakage level to ensure it meets system sensitivity constraints.

Part Context

This part belongs to Pasternack's series of high-power limiters designed for robust RF signal management. It serves as a protective element in wireless systems, preventing damage to sensitive downstream components from excessive input power while maintaining signal fidelity.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
