PE80L2002

Overview

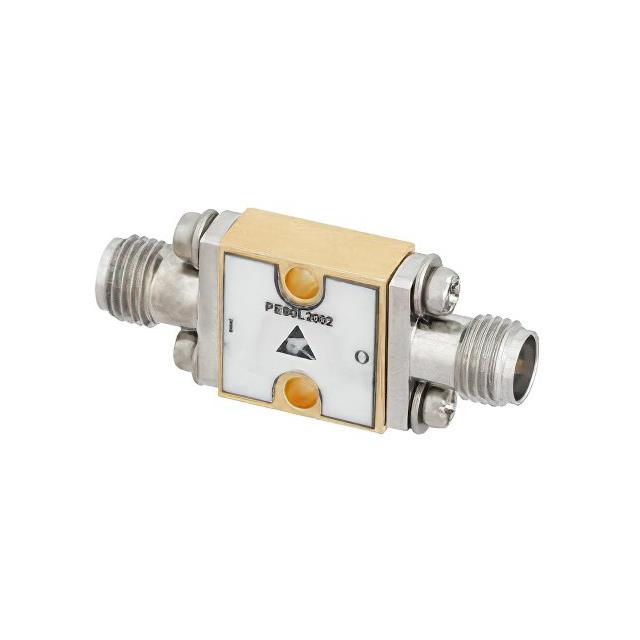

The PE80L2002 is a high-power limiter manufactured by Pasternack, designed for operation within the 18 GHz to 40 GHz frequency range. It features 2.92mm female connectors on both sides and handles a peak power of 20 Watts. The device exhibits a recovery time of 10 nanoseconds and maintains a flat leakage of 18 dBm.

Feature Summary

• High-power limiting capability with 20W peak power handling
• Operates across the 18 GHz to 40 GHz spectrum
• Utilizes 2.92mm female-to-female connector interface
• Fast 10 ns recovery time for signal protection

Applications

• Protection of sensitive RF components in high-power transmission lines
• Microwave and millimeter-wave system integration
• Test and measurement equipment signal conditioning

Procurement Notes

Verify the specific datasheet requirements for thermal management and mounting constraints before integration. Confirm that the 2.92mm connector compatibility aligns with existing system interfaces. Ensure the 20W peak power rating meets the maximum expected signal levels to prevent component damage during transient events.

Selection Notes

Select this model when operating frequencies extend up to 40 GHz and high peak power handling is required. The 2.92mm interface ensures compatibility with standard microwave test setups. Consider the 10 ns recovery time for applications requiring rapid signal restoration after limiting events.

Part Context

This component belongs to Pasternack's portfolio of RF, microwave, and millimeter-wave passive components. It serves as a protective element within broader signal chain architectures, ensuring system integrity against power surges while maintaining signal fidelity in high-frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify connector type and frequency range compatibility if considering alternative manufacturers.
