PE80L2003

Overview

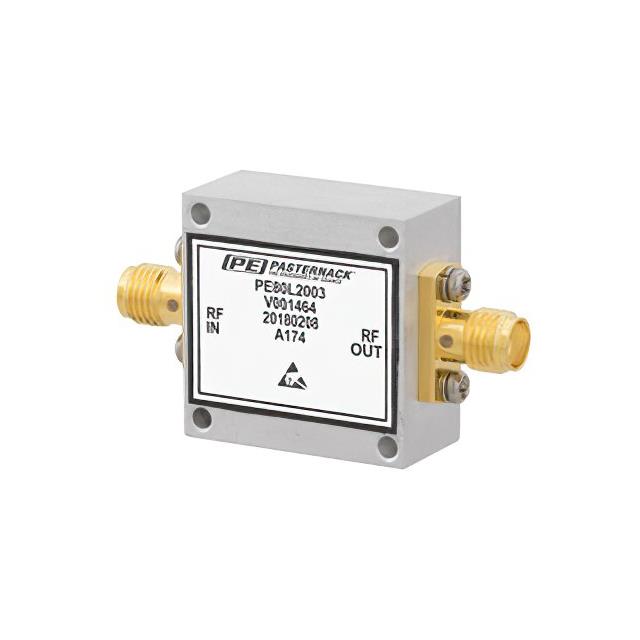

The PE80L2003 is a high power limiter manufactured by Pasternack, designed for signal conditioning in RF systems. It features field-replaceable SMA connectors and operates within a frequency range of 20 MHz to 4 GHz. The device supports a peak power handling capability of 100W with a 15 microsecond recovery time. Key electrical specifications include a maximum insertion loss of 0.8 dB and a flat leakage of 13 dBm. The unit is constructed with SMA female-to-female interfaces and weighs approximately 69 grams.

Feature Summary

• Field-replaceable SMA connector design for maintenance flexibility
• High power limiting capability with 100W peak power support
• Low insertion loss performance for efficient signal transmission
• Flat leakage characteristic ensuring consistent protection levels

Applications

• Space systems
• VSAT networks
• SATCOM applications
• Radar systems
• Microwave radio links

Procurement Notes

Verify the specific datasheet version and technical parameters directly from Pasternack official documentation before procurement. Confirm that the SMA interface type matches system requirements. Check for any regional shipping restrictions or supply limitations associated with this component. Ensure compatibility with operating temperature ranges specified in the product literature.

Selection Notes

Select the PE80L2003 when a high power limiter with field-replaceable connectors is required for frequencies between 20 MHz and 4 GHz. Consider its 100W peak power rating and 15 us recovery time for pulse applications. Evaluate the 0.8 dB insertion loss against system budget constraints. Verify suitability for space, VSAT, SATCOM, radar, or microwave radio environments based on operational needs.

Part Context

This component belongs to Pasternack's lineup of RF and microwave limiters. It is categorized under general purpose RF IC limiters and modules. The PE80L2003 is part of a series offering high power handling with standard SMA interfaces, targeting demanding communication and defense applications requiring reliable signal protection.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Pasternack engineering for potential equivalents if this specific model is unavailable.

FAQ

What is the recovery time of the PE80L2003 limiter?

The PE80L2003 has a recovery time of 15 microseconds.

What is the maximum insertion loss for this component?

The maximum insertion loss is 0.8 dB.

Is the connector assembly field-replaceable?

Yes, the PE80L2003 features a field-replaceable SMA connector design.
