PE80L2006

Overview

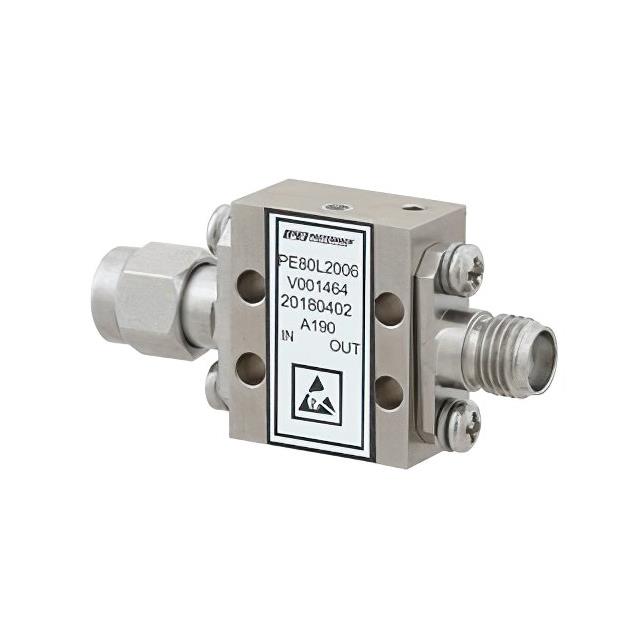

The PE80L2006 is a general-purpose RF IC limiter manufactured by Pasternack. It operates within a frequency range of 2 GHz to 18 GHz and supports a power handling capacity of 100 Watts. This component is designed for integration into radio frequency systems requiring signal protection against high-power events.

Feature Summary

• Provides general-purpose limiting functionality for RF signals
• Operates across a wide frequency spectrum from 2 GHz to 18 GHz
• Handles high power levels up to 100 Watts

Applications

• RF system protection circuits
• High-power signal management in communication equipment
• Receiver front-end protection

Procurement Notes

Verify the exact technical specifications directly from the official Pasternack datasheet, as product images may be representative only. Confirm that the component meets the specific frequency and power requirements for your application before procurement.

Selection Notes

Select this component when a broad frequency coverage between 2 GHz and 18 GHz is required alongside high power handling capabilities. Ensure the interface and form factor are compatible with the target RF circuit design.

Part Context

This part belongs to the category of RF miscellaneous ICs and modules offered by Pasternack. It serves as a specialized active component for managing RF signal integrity and protecting sensitive downstream elements from excessive power exposure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct replacements or equivalent specifications.
