PE80L2007

Overview

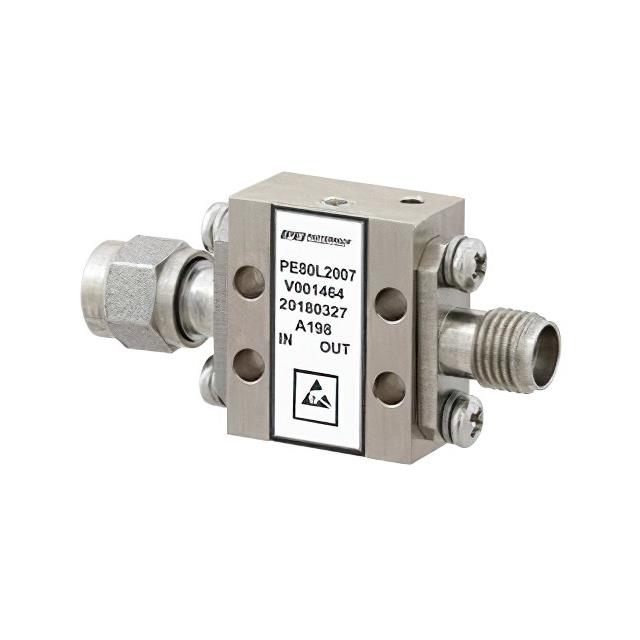

The PE80L2007 is a general-purpose RF IC limiter manufactured by Pasternack. It operates within the frequency range of 18 GHz to 40 GHz and supports a peak power handling capacity of 100W. The device features a field-replaceable design with a recovery time of 15 microseconds and maintains a flat leakage of 13 dBm. This component is engineered for high-performance signal conditioning in demanding microwave applications.

Feature Summary

• Field-replaceable construction for simplified maintenance
• High power handling capability up to 100W peak
• Operates across the 18 GHz to 40 GHz frequency spectrum

Applications

• Space systems
• VSAT networks
• SATCOM infrastructure
• Radar systems
• Microwave radio links

Procurement Notes

Verify that the specific part number matches the required frequency range and power specifications for your application. Confirm interface compatibility and mounting requirements before procurement. Ensure the supplier provides valid documentation regarding the component's active status and technical datasheet availability for accurate integration planning.

Selection Notes

Select this limiter when high peak power protection is required in the Ka-band or higher frequencies. Consider the 15 microsecond recovery time and 13 dBm leakage characteristics against system sensitivity requirements. Evaluate the chassis mount configuration and field-replaceable nature for long-term operational efficiency in critical communication environments.

Part Context

This component belongs to Pasternack's lineup of RF and microwave signal conditioning devices. It serves as a protective element within complex transmission lines, ensuring downstream components remain safe from high-power surges while maintaining signal integrity across wide bandwidths typical in modern satellite and radar technologies.

Replacement Considerations

No public confirmed substitute part numbers are available.
