Product Detailed Parameters
- Description：High Power Limiter, Field Replac
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Limiter
- Frequency：26.5GHz ~ 40GHz
- RF Type：General Purpose
- Secondary Attributes：100W
- Mounting Type：Chassis Mount
- Package / Case：2.92mm In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

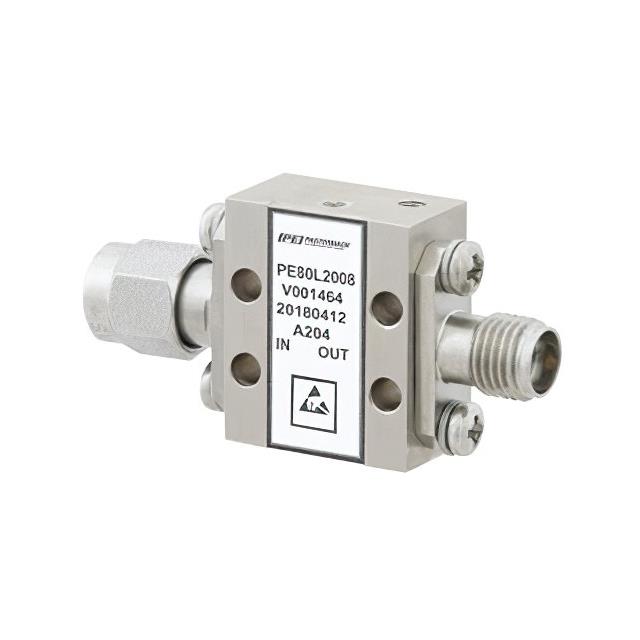

The PE80L2008 is a high power limiter manufactured by Pasternack, designed for signal conditioning in RF systems. It operates within the frequency range of 26.5 GHz to 40 GHz and utilizes a field-replaceable 2.92mm connector interface. The device supports a peak power handling capacity of 100W with a recovery time of 15 microseconds. It maintains a flat leakage specification of 13 dBm during operation.
Feature Summary
- Field replaceable design utilizing 2.92mm connectors
- High power handling capability up to 100W peak
- Fast recovery time of 15 microseconds
- Flat leakage performance at 13 dBm
Applications
- Space systems
- VSAT applications
- SATCOM infrastructure
- Radar systems
- Microwave radio links
Procurement Notes
Verify the specific connector type and frequency range requirements against the 26.5 GHz to 40 GHz specification before procurement. Confirm that the 100W peak power rating aligns with system pulse width and duty cycle constraints. Ensure compatibility with the 2.92mm interface standard. Check for any specific environmental ratings required for the intended deployment environment.
Selection Notes
Select this component when operating frequencies fall between 26.5 GHz and 40 GHz. Choose the PE80L2008 if a 100W peak power limit is necessary with a 15 microsecond recovery profile. The 2.92mm connector format dictates mechanical integration. Consider the 13 dBm leakage level for sensitivity requirements in the receiving chain.
Part Context
This model belongs to Pasternack's high power limiter series, which includes variants like the PE80L2003 and PE80L2002. These components are engineered for robust signal protection in demanding RF environments. The series emphasizes field replaceability and high peak power tolerance across various microwave frequency bands.
Replacement Considerations
The PE80L2002 serves as a related variant covering 18 to 40 GHz with different leakage characteristics. Verify frequency overlap and leakage specifications when considering substitutes. No direct cross-model functional equivalence is confirmed without detailed datasheet comparison.
