PE80L3000

Overview

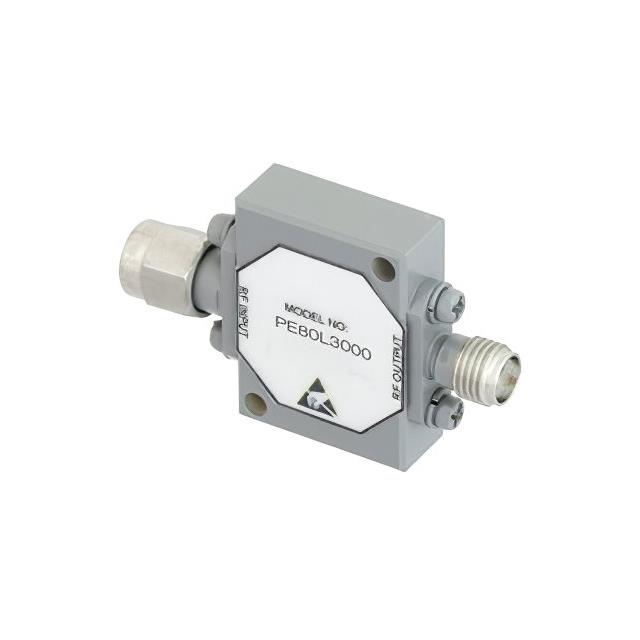

The PE80L3000 is a hermetically sealed high power limiter manufactured by Pasternack. It features SMA connectors and operates within a frequency range of 2 GHz to 18 GHz. The device supports a peak power handling capacity of 200W at a 1 microsecond pulse width with a 0.1% duty cycle. Key electrical specifications include a 100 nanosecond recovery time and a flat leakage level of 14 dBm. The unit weighs 12.247 grams.

Feature Summary

• Hermetically sealed construction for environmental protection
• High peak power handling capability up to 200W
• Ultra-fast recovery time of 100 ns
• Flat leakage performance across the operational band

Applications

• Space systems
• VSAT applications
• SATCOM systems
• Radar equipment
• Microwave radio links

Procurement Notes

Verify the specific connector type and pin configuration against the official datasheet before integration. Confirm that the thermal management requirements align with the hermetic seal design. Ensure the operating environment does not exceed the specified pressure limits for the sealed package. Cross-reference the part number suffixes to guarantee exact mechanical compatibility with existing assembly fixtures.

Selection Notes

Select this component when high peak power protection is required in microwave frequencies. The hermetic seal makes it suitable for harsh environments where standard limiters might fail. Consider the 100 ns recovery speed for pulsed signal applications. Verify that the SMA interface matches the system architecture. Evaluate the 200W peak rating against maximum expected surge levels.

Part Context

This model belongs to Pasternack's High Power Limiter series, designed for robust signal conditioning. It complements other limiters like the PE80L2003 which offers different pulse widths. The product line focuses on providing reliable protection for sensitive RF components in demanding communication and radar systems.

Replacement Considerations

The PE80L2003 is a documented alternative offering similar functionality with a 10µs pulse width specification. Both units serve as high power limiters for space and radar applications. Verify that the 100W peak rating of the substitute meets the system requirements if the 200W rating is not critical.
