Product Detailed Parameters
- Description：Adjustable Phase Trimmer, DC to
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Phase Trimmer
- Frequency：0Hz ~ 10GHz
- RF Type：Radar
- Secondary Attributes：100W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

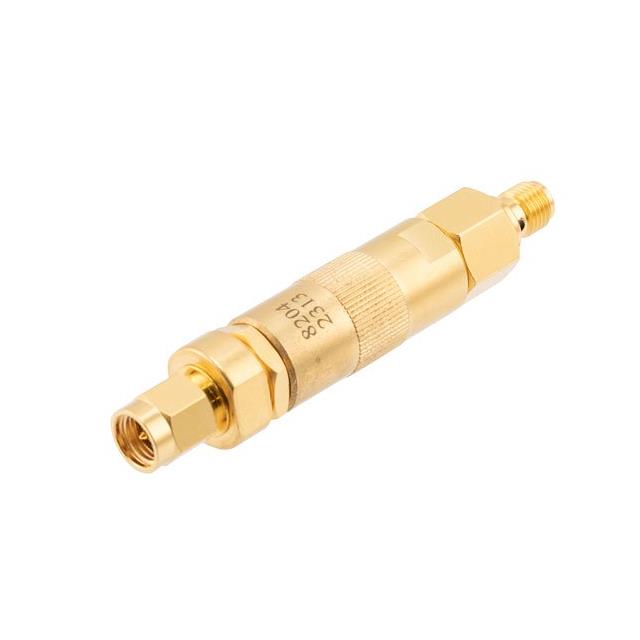

The Pasternack PE8204 is an adjustable phase trimmer designed for signal conditioning applications within the DC to 10 GHz frequency range. It features SMA connectors and maintains a 50 Ohms impedance. The device provides an adjustable phase shift of 15 degrees per GHz, with a maximum insertion loss of 0.3 dB. Constructed with a brass body, it is packaged in bulk quantities.
Feature Summary
- Provides precise phase adjustment across a wide microwave frequency spectrum
- Utilizes standard SMA connector interfaces for reliable integration
- Engineered with low insertion loss characteristics for signal integrity
Applications
- Microwave test and measurement systems requiring phase calibration
- Radar system alignment and beamforming adjustments
- Communication equipment phase trimming and compensation
Procurement Notes
Verify the specific datasheet version when ordering, as technical specifications may be updated. Confirm that the SMA termination style matches your existing cable assemblies or fixture requirements. Ensure the operating environment supports the component's physical dimensions and weight specifications for proper mounting.
Selection Notes
Select this component when a broad frequency coverage from DC to 10 GHz is required alongside fine phase resolution. The 15 degrees per GHz adjustability allows for flexible tuning in high-frequency designs. Consider the brass construction and bulk packaging for suitability in laboratory or production environments where manual handling is standard.
Part Context
This component belongs to the Adjustable Phase Trimmers series by Pasternack. It serves as a signal conditioning element within RF interconnects, distinct from passive adapters or fixed attenuators. The product line focuses on providing tunable phase shifts for precision microwave engineering tasks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility based on the SMA interface, 50 Ohms impedance, and 10 GHz frequency limit when evaluating alternative components.
