PE8207

Overview

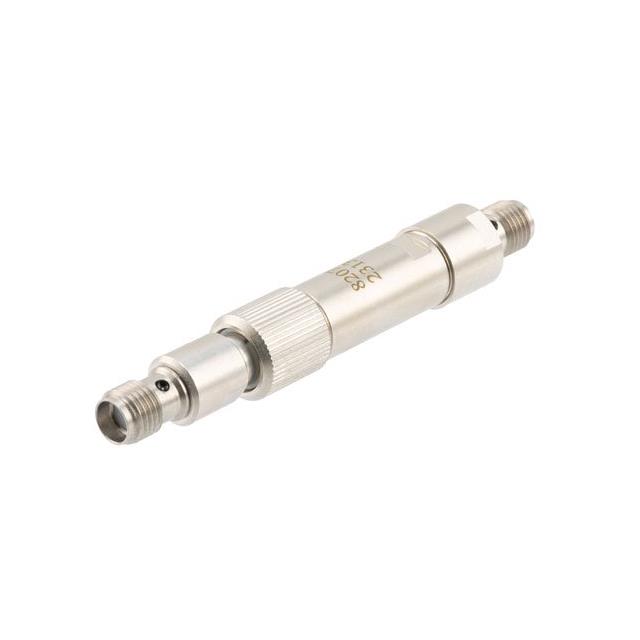

The PE8207 is an adjustable phase trimmer manufactured by Pasternack, designed for RF applications requiring precise phase matching. It operates over a frequency range of DC to 10 GHz and features SMA connectors with a passivated stainless steel housing. The component provides an adjustable phase shift of 19.16 degrees per GHz. It maintains a 50Ω impedance and is engineered to allow manual phase adjustments without degrading the signal phase.

Feature Summary

• Provides precise manual phase adjustment capabilities without signal degradation
• Features a durable passivated stainless steel housing for robust performance
• Supports 50Ω impedance matching across the operational frequency spectrum

Applications

• Test and measurement systems
• Radar development
• Military communications systems
• Phase array antenna systems
• Satellite communications

Procurement Notes

Verify the specific part number PE8207 against official Pasternack documentation to confirm the SMA connector type and stainless steel body construction. Ensure compatibility with DC to 10 GHz operational requirements. Cross-reference datasheet specifications for phase adjustment rates and impedance values before integration into system designs.

Selection Notes

Select this component when phase matching between two cables is required in RF environments. It is suitable for applications needing manual phase trimming within the DC to 10 GHz range. Consider the SMA interface and stainless steel housing for environmental durability and standard connectivity needs.

Part Context

This component belongs to the adjustable phase trimmers series from Pasternack, categorized under wireless & RF integrated circuits. It serves as a passive element for signal phase control in high-frequency electronic systems, distinct from active RF modules or standard cable assemblies.

Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. No public confirmed substitutes are listed in the provided data.
