PE8244

Overview

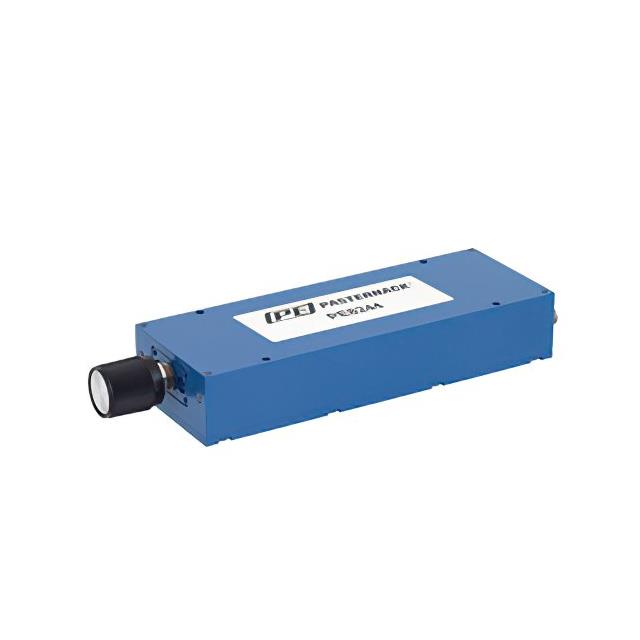

The PE8244 is a 50 Ohm SMA to SMA adjustable phase trimmer manufactured by Pasternack. It operates from DC to 4 GHz with an adjustable phase range of 60.00 degrees. The component utilizes standard SMA connectors for both input and output interfaces, ensuring compatibility within RF systems requiring precise phase adjustment in the specified frequency band.

Feature Summary

• Adjustable phase trimming capability
• SMA connector interface
• DC to 4 GHz operational range

Applications

• RF signal phase adjustment
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may be hosted by distributors. Confirm that the SMA interface matches system requirements. Check for RoHS compliance status if environmental regulations apply to your deployment. Ensure the 60-degree adjustment range meets design specifications before procurement.

Selection Notes

Select this component when fixed phase shifters are insufficient for calibration needs. The SMA interface suits general-purpose RF applications up to 4 GHz. Consider physical size constraints and mounting requirements relative to other phase trimmers in the same frequency range.

Part Context

This part belongs to Pasternack's RF and wireless product line, specifically categorized under adjustable phase shifters. It complements their broader portfolio of RF adapters and interconnects designed for precision signal processing tasks in commercial and industrial electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
