Product Detailed Parameters
- Description：Adjustable Phase Shifter, DC-18.
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Phase Shifter
- Frequency：0Hz ~ 18.6GHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

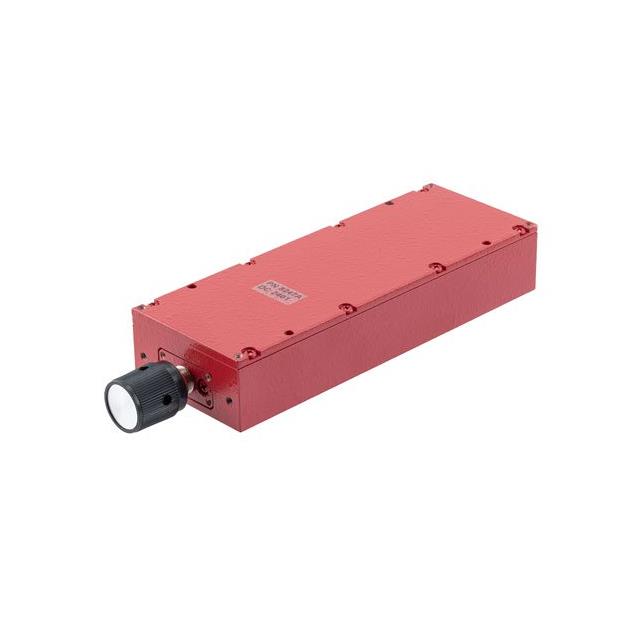

The PE8247A is an adjustable phase shifter manufactured by Pasternack, designed for radio frequency applications. It operates across a frequency range from DC to 18.6 GHz. The device features SMA connectors and provides an adjustable phase shift capability with a minimum rate of 60 degrees per gigahertz. The unit is housed in an aluminum-plated enclosure to support its structural integrity and thermal management within RF systems.
Feature Summary
- Adjustable phase shifting mechanism for precise signal alignment
- Broadband operation covering DC to 18.6 GHz frequencies
- SMA connector interface for standard RF integration
- Aluminum-plated housing for durability
Applications
- RF cable phase matching between two cables
- Phase detection systems
- Radio frequency integrated circuit modules
Procurement Notes
Verify the specific datasheet version and manufacturer lead time before ordering, as production cycles may vary. Confirm that the SMA connector type matches the system requirements. Ensure the operating frequency range up to 18.6 GHz aligns with the application design. Check for any regional distribution restrictions or availability constraints prior to finalizing procurement plans.
Selection Notes
Select this component when precise phase adjustment is required within a broadband RF environment. The SMA interface ensures compatibility with standard test and measurement equipment. Consider the maximum input power specifications and the physical dimensions of the aluminum-plated housing during system integration. This model is suitable for applications demanding high-frequency stability and adjustable phase control.
Part Context
The PE8247A belongs to Pasternack's portfolio of RF IC phase shifters and adjustable phase trimmers. It is categorized under phase detectors and variable phase shifters. The product is intended for use in scenarios where phase matching between cables is critical. It represents a specialized solution for fine-tuning signal phases in high-frequency electronic systems.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Pasternack resources for potential alternatives if this specific model is unavailable.
