PE8253A

Overview

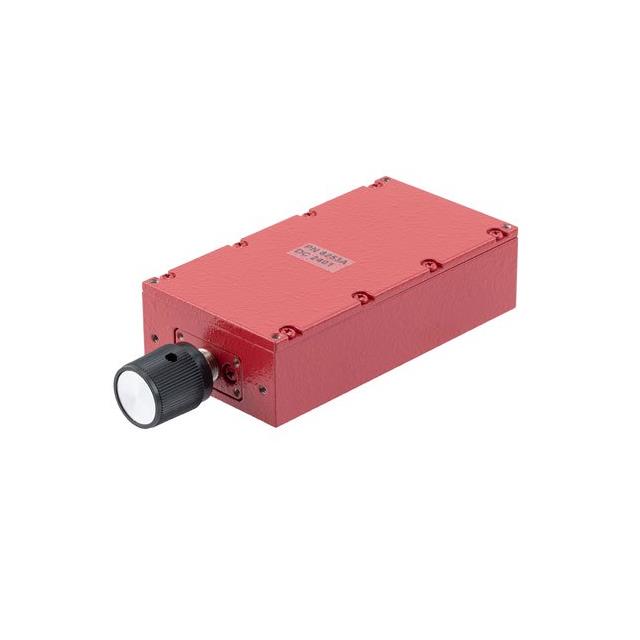

The Pasternack PE8253A is an adjustable phase shifter designed for radio frequency applications. It operates within a frequency range of 18 GHz to 26.5 GHz and provides a minimum adjustable phase shift of 360 degrees. The component features SMA connectors for interface compatibility. It is classified under the Adjustable Phase Shifters series and falls within the Wireless & RF Integrated Circuits subcategory. The unit weighs approximately 40 grams and is packaged in bulk.

Feature Summary

• Provides continuous phase adjustment capability across a full 360-degree range
• Operates effectively in the high-frequency microwave spectrum between 18 GHz and 26.5 GHz
• Utilizes standard SMA connector interfaces for system integration

Applications

• Microwave communication systems requiring precise phase control
• Radar signal processing architectures
• Test and measurement instrumentation setups

Procurement Notes

Verify current availability status as supply may be restricted or limited in certain regions. Confirm that the SMA connector type matches your system requirements. Ensure the operating frequency range aligns with your specific application needs before procurement. Check for any regional sales restrictions imposed by distributors.

Selection Notes

Select this component when a wideband adjustable phase shift is required in the K-band and upper Ka-band frequencies. Consider the SMA interface compatibility with existing circuitry. Evaluate the physical weight and bulk packaging against assembly constraints. Ensure the 360-degree adjustment range meets the system's phase modulation specifications.

Part Context

This device belongs to the Adjustable Phase Shifters series from Pasternack, targeting wireless and RF integrated circuit applications. It serves as a specialized component for managing signal phase in high-frequency environments. The product represents a new offering from the manufacturer, indicating recent introduction to the market segment.

Replacement Considerations

No publicly confirmed substitute part numbers are available for this specific model. Users should consult official documentation for potential cross-references or contact the manufacturer directly for compatible alternatives.
