PE82P1000A

Overview

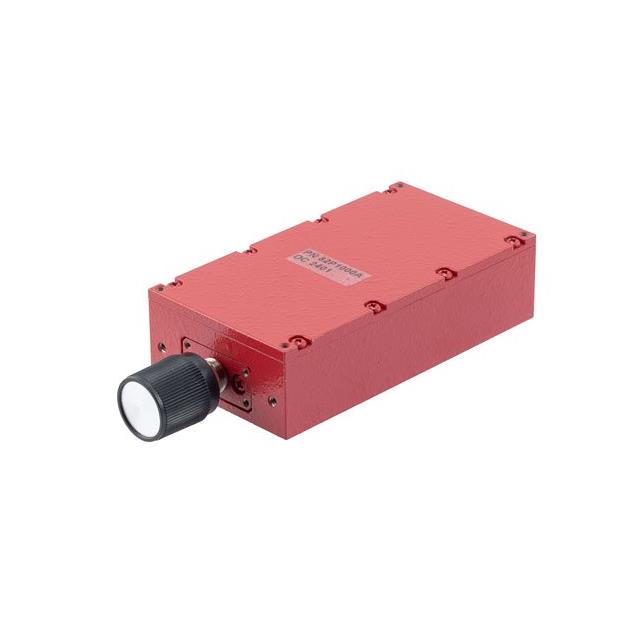

The PE82P1000A is an adjustable phase shifter manufactured by Pasternack, designed for high-frequency RF applications. It operates within a frequency range of 18 GHz to 40 GHz and provides a minimum adjustable phase shift of 360 degrees. The component utilizes a 2.92mm connector interface to ensure reliable signal transmission in demanding environments. This device serves as a critical element for precise phase control in microwave systems.

Feature Summary

• Provides continuous phase adjustment capability across the specified operational bandwidth
• Utilizes 2.92mm connector interface for secure and low-loss connections
• Designed for high-frequency operation supporting millimeter-wave applications

Applications

• Phased array antenna systems requiring precise beam steering
• Microwave measurement and test equipment setups
• Satellite communication ground station components

Procurement Notes

Verify the specific connector type and phase adjustment range against system requirements before ordering. Confirm availability status with authorized distributors as supply may be limited. Ensure compatibility with existing 2.92mm infrastructure. Review official datasheets for environmental operating conditions and mechanical dimensions to validate integration feasibility.

Selection Notes

Select this component when precise phase manipulation is required between 18 GHz and 40 GHz. Consider the 2.92mm interface for compatibility with high-frequency test gear. Evaluate the 360-degree minimum adjustment range against system calibration needs. Assess physical size constraints and mounting requirements prior to final selection.

Part Context

This part belongs to Pasternack's adjustable phase shifter series, targeting millimeter-wave frequencies. It complements other RF components like limiters and circulators in complex signal chains. The product line focuses on providing stable phase control for advanced radar and communication technologies requiring high precision.

Replacement Considerations

No public confirmed substitute part numbers are available.
