Product Detailed Parameters
- Description：Analog Phase Shifter, 6 GHz to 1
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Phase Shifter
- Frequency：6GHz ~ 15GHz
- RF Type：Radar
- Secondary Attributes：800° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

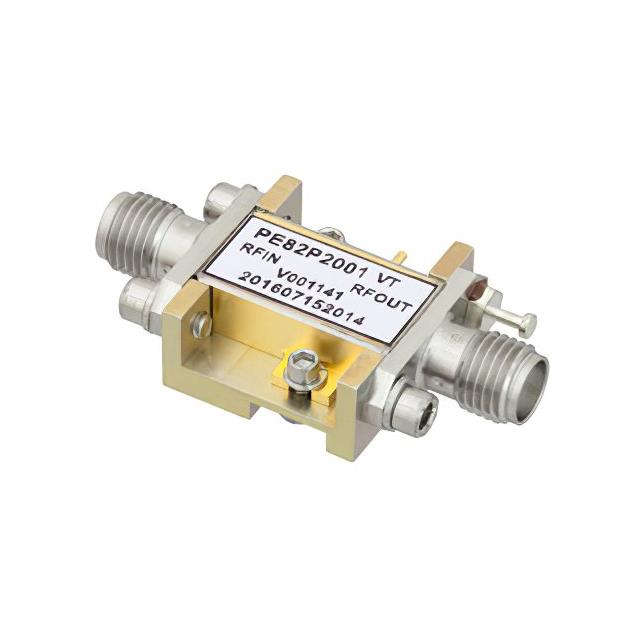

The PE82P2001 is an analog phase shifter manufactured by Pasternack. It operates within a frequency range of 6 GHz to 15 GHz. The device provides a typical continuous variable monotonic phase shift range from 0° to 800°. It features an analog control voltage input ranging from 0V to +10V. The unit supports a modulation bandwidth of 50 MHz and exhibits an insertion loss of 6 dB.
Feature Summary
- Provides continuous variable and monotonic phase shifting capability across the specified frequency band.
- Accepts analog control voltage inputs for precise phase adjustment.
- Supports high-speed signal modulation with a dedicated bandwidth specification.
Applications
- Phased array antenna systems requiring beam steering
- RF test and measurement instrumentation
- Wireless communication infrastructure components
Procurement Notes
Verify the specific analog control voltage requirements against system design specifications before procurement. Confirm that the operating frequency range aligns with the intended application spectrum. Ensure interface compatibility with existing RF circuitry. Review manufacturer documentation for detailed electrical characteristics and environmental ratings.
Selection Notes
Select this component when continuous analog phase control is required rather than digital step-wise adjustment. Consider the 6 dB insertion loss impact on overall system gain. Evaluate the 0V to +10V control interface compatibility with available driver circuits. Assess the 50 MHz modulation bandwidth against signal processing speed requirements.
Part Context
This model belongs to Pasternack's portfolio of coaxial radio frequency components. It is categorized as an analog phase shifter designed for integration into microwave and millimeter-wave circuits. The device utilizes SMA connectors for signal interfacing, fitting within standard RF assembly architectures.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence regarding phase range, frequency coverage, and control voltage specifications if considering alternative manufacturers.
