Product Detailed Parameters
- Description：Analog Phase Shifter, 1 GHz to 2
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Phase Shifter
- Frequency：1GHz ~ 2GHz
- RF Type：General Purpose
- Secondary Attributes：360° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

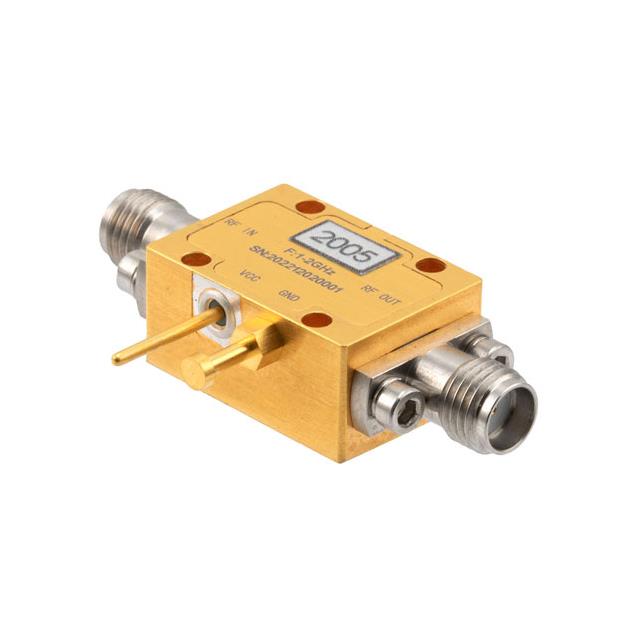

The PE82P2005 is an analog phase shifter manufactured by Pasternack. It operates within a frequency range of 1 GHz to 2 GHz, providing a continuous 360-degree phase shift capability. The device requires a control voltage input between 0 V and +12 V for operation. Insertion loss specifications range from 4.5 dB to 5.5 dB across the operating band. The maximum input power rating is +27 dBm at the pin. The component utilizes SMA connectors for RF signal interfacing.
Feature Summary
- Provides continuous 360-degree analog phase adjustment
- Operates within the 1 GHz to 2 GHz frequency spectrum
- Supports variable control voltage inputs from 0 V to +12 V
Applications
- Phased array antenna systems
- RF test and measurement equipment
- Wireless communication infrastructure
Procurement Notes
Verify the specific datasheet version for the PE82P2005 to confirm current electrical tolerances and connector specifications. Ensure that the system design accommodates the required 0 V to +12 V control voltage range and the specified insertion loss characteristics. Confirm compatibility with SMA interfaces before integration into the final assembly.
Selection Notes
Select this component when a wideband 360-degree phase shift is required within the 1-2 GHz range. Consider the 4.5 to 5.5 dB insertion loss impact on system gain. Verify that the +27 dBm power handling meets the application's signal strength requirements. Ensure the control interface can supply the necessary 0 to +12 V drive voltage.
Part Context
This part belongs to Pasternack's portfolio of RF integrated circuits and modules. It functions as a general-purpose analog phase shifter designed for microwave applications. The device integrates phase shifting capabilities into a compact form factor suitable for various RF front-end designs requiring precise signal phase control.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative phase shifters based on matching frequency ranges, phase resolution, and control voltage requirements if replacement is necessary.
