PE82P2006

Overview

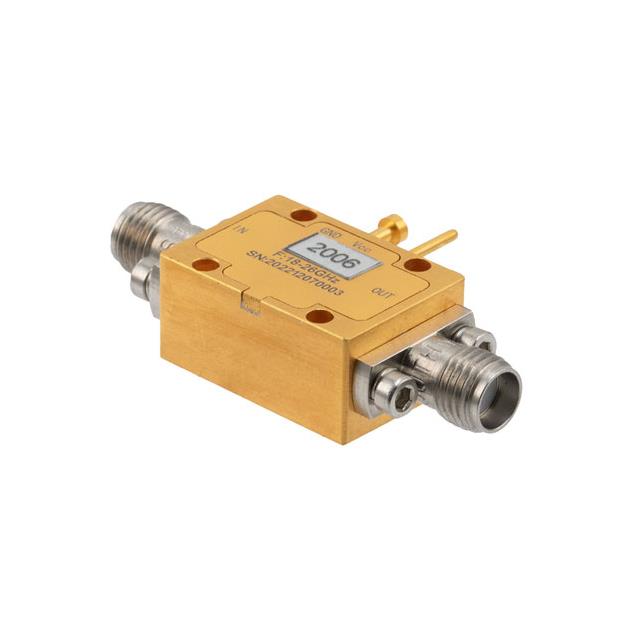

The Pasternack PE82P2006 is an analog phase shifter designed for RF and wireless applications. It operates within a frequency range of 18 GHz to 26 GHz, providing a continuous 360-degree phase adjustment capability. The device utilizes a control voltage input ranging from 0V to +13V to modulate the signal phase. It supports a maximum input power of +26 dBm at the pin. The component features SMA connectors for interface connectivity.

Feature Summary

• Provides continuous 360-degree phase adjustment across the specified frequency band
• Operates with a linear control voltage input ranging from 0V to +13V
• Supports high input power handling up to +26 dBm

Applications

• Phased array antenna systems
• RF test and measurement equipment
• Wireless communication infrastructure

Procurement Notes

Verify the specific datasheet version for precise insertion loss and return loss parameters before integration. Confirm that the SMA connector type matches the system requirements. Ensure the control voltage supply aligns with the 0V to +13V specification. Check for any environmental ratings if operating in extreme conditions.

Selection Notes

Select this component when a wideband phase shift is required between 18 GHz and 26 GHz. The analog control method allows for smooth phase transitions compared to digital steps. Consider the +26 dBm power handling limit for high-power transmission lines. Evaluate the physical size and mounting requirements against the available space in the assembly.

Part Context

This part belongs to Pasternack's adjustable phase shifter series. It is distinct from digital phase shifters by offering continuous analog control. The product line targets high-frequency microwave applications requiring precise phase alignment. Other models in the series may cover different frequency ranges or offer varying phase resolution.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
