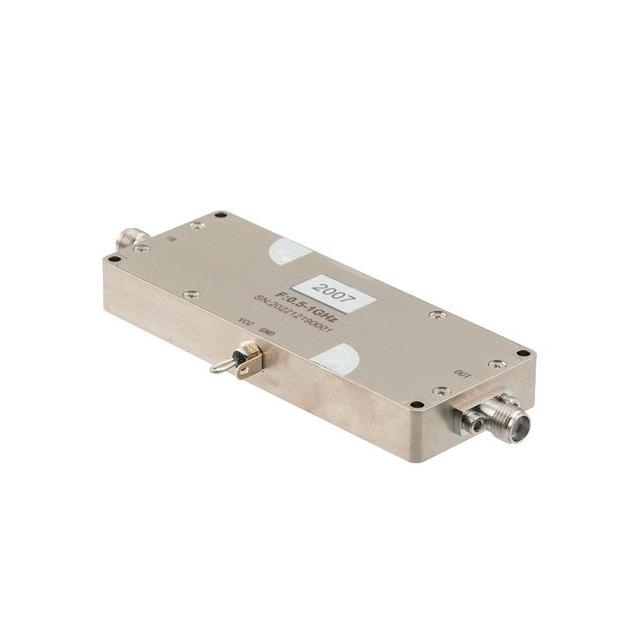

PE82P2007

Overview

The Pasternack PE82P2007 is an analog phase shifter designed for RF applications within the 0.5 GHz to 1 GHz frequency range. It provides a full 360-degree phase adjustment capability, controlled by an input voltage ranging from 0V to +20V. The device supports a maximum input power of +23 dBm and utilizes SMA connectors for interface connectivity.

Feature Summary

• Provides continuous 360-degree phase shift coverage across the specified operating band
• Utilizes analog control voltage for precise phase angle adjustment
• Engineered to handle high signal power levels up to +23 dBm

Applications

• RF test and measurement instrumentation
• Phased array antenna beam steering systems
• Wireless communication system calibration

Procurement Notes

Verify that the required control voltage range aligns with available driver circuitry capabilities. Confirm that the SMA connector type matches the system interconnect requirements. Ensure the operating frequency falls strictly within the 0.5 GHz to 1 GHz specification to maintain performance integrity.

Selection Notes

Select this component when a wide 360-degree phase range is required at microwave frequencies. Consider the analog control method if digital step-shifters are insufficient. Evaluate the +23 dBm power handling against system peak power levels to prevent damage.

Part Context

This unit belongs to Pasternack's phase detector and shifter product line. It serves as a critical active component for manipulating signal phase in high-frequency circuits. The design focuses on broad phase coverage rather than discrete steps.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
