Product Detailed Parameters
- Description：Analog Phase Shifter, 0.5 GHz to
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Phase Shifter
- Frequency：500MHz ~ 1GHz
- RF Type：General Purpose
- Secondary Attributes：180° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

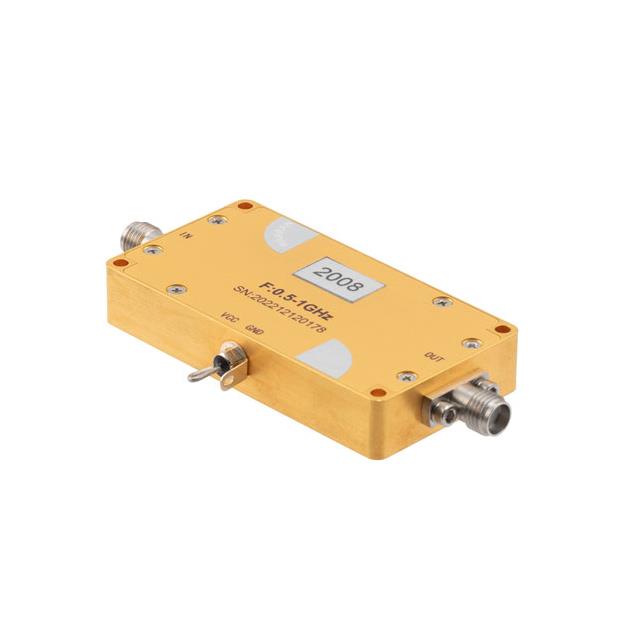

The PE82P2008 is an analog phase shifter manufactured by Pasternack, designed for RF applications within the 0.5 GHz to 1 GHz frequency range. It provides a continuous 180-degree phase shift capability. The device utilizes SMA connectors for signal interfacing and operates with a control voltage range of 0V to +15V. It supports a maximum input power level of +30 dBm at the pin. The unit is packaged as a module with integrated SMA connectors.
Feature Summary
- Provides adjustable analog phase shifting across a defined radio frequency band
- Features SMA connector interfaces for standard RF integration
- Operates with a linear DC control voltage input for phase adjustment
Applications
- RF test and measurement instrumentation requiring precise phase alignment
- Phased array antenna systems for beam steering control
- Communication equipment needing variable phase compensation
Procurement Notes
Verify the specific datasheet version for the PE82P2008 to confirm current RoHS compliance status and detailed electrical tolerances. Ensure that the control voltage supply matches the 0V to +15V requirement specified in the official documentation. Confirm that the SMA connector type aligns with the system interface requirements before finalizing procurement orders.
Selection Notes
Select this component when a fixed 180-degree phase shift range is required between 0.5 GHz and 1 GHz. The PE82P2008 is suitable for designs utilizing SMA connections and analog voltage control. Consider the +30 dBm maximum input power limit when integrating into high-power signal chains. Verify compatibility with the available control voltage sources in the host system architecture.
Part Context
This part belongs to Pasternack's series of adjustable phase shifters and detectors. It serves as a specialized RF component for manipulating signal phase in wireless and microwave circuits. The product line focuses on providing reliable phase control solutions for professional engineering applications requiring precise signal timing adjustments.
Replacement Considerations
Consult official Pasternack documentation for verified substitute part numbers. No public cross-reference data is confirmed for direct replacement without verifying electrical parameter equivalence.
