Product Detailed Parameters
- Description：PHASE SHIFTER: SMA F 0-4GHZ
- Series：-
- Mfr：Pasternack
- Package：Case
- Function：Phase Shifter, Trimmer
- Frequency：0Hz ~ 4GHz
- RF Type：Radar
- Secondary Attributes：60° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

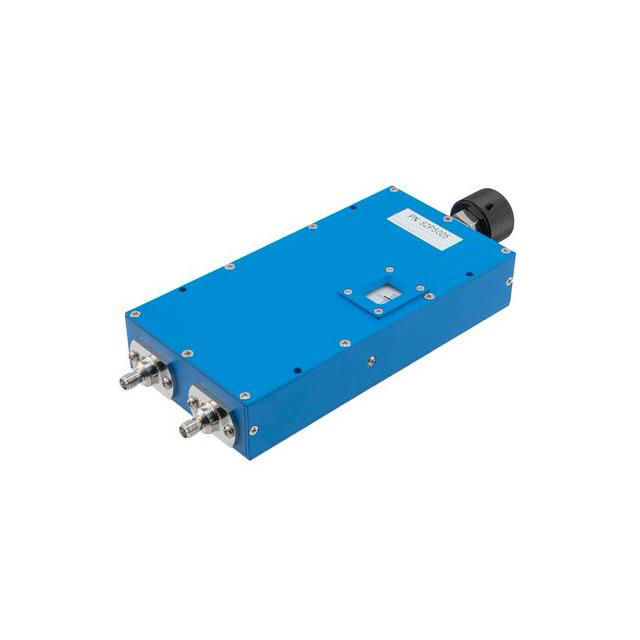

The Pasternack PE82P5005 is an adjustable phase shifter designed for radio frequency applications spanning from DC to 4GHz. It provides a phase adjustment range of 60 degrees per GHz, allowing for precise signal control. The device features SMA female connectors for integration into RF systems and utilizes a precision rotary dial design to facilitate controllable phase shifting. This component is categorized under phase detectors and shifters within the wireless and RF integrated circuits subcategory.
Feature Summary
- Adjustable phase shifting capability across a wide frequency spectrum
- Precision rotary dial mechanism for accurate phase control
- SMA female connector interface for standard RF integration
Applications
- RF test and measurement equipment
- Wireless communication systems
- Signal processing circuits
Procurement Notes
Verify RoHS compliance status through official manufacturer documentation before procurement. Confirm that the SMA female interface matches system requirements. Ensure the operating frequency range up to 4GHz aligns with application needs. Check for any regional distribution restrictions or supply limitations directly with authorized channels.
Selection Notes
Select this component when precise phase adjustment is required in RF circuits operating between DC and 4GHz. The 60 degrees per GHz adjustment rate offers fine control granularity. Consider the SMA connector type for compatibility with existing test fixtures and cabling infrastructure.
Part Context
This part belongs to the Adjustable Phase Shifters series by Pasternack. It falls under the broader category of Phase Detectors / Shifters within Wireless & RF Integrated Circuits. The product is identified as a new item from the manufacturer, indicating recent introduction or updated availability in the portfolio.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Pasternack resources for potential cross-references or alternative models within the same series.
