PE82P5006

Overview

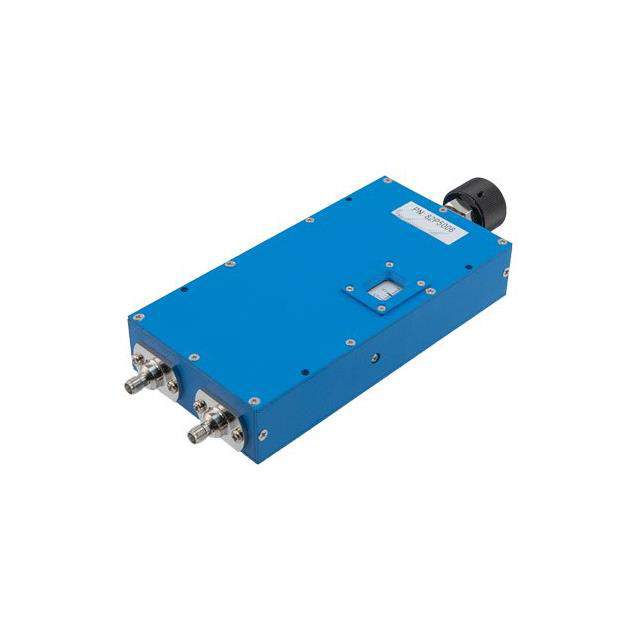

The Pasternack PE82P5006 is an adjustable phase shifter designed for RF applications requiring precise phase matching between cables. It operates over a frequency range of DC to 8 GHz and features SMA connectors. The device provides an adjustable phase shift rate of 60 degrees per GHz, allowing for fine-tuned signal alignment in radar and wireless systems.

Feature Summary

• Adjustable phase shifting capability with a rate of 60 degrees per GHz
• Operates from DC up to 8 GHz frequency range
• Equipped with SMA connectors for standard RF interfacing

Applications

• Radar systems requiring phase matching
• Wireless communication infrastructure
• RF cable phase adjustment

Procurement Notes

Verify the specific connector type and frequency range against your system requirements before ordering. Confirm that the 60 degrees per GHz adjustment rate meets your phase tolerance needs. Check for any regional shipping restrictions or availability limitations as indicated by distributors. Ensure compatibility with existing SMA interfaces in your setup.

Selection Notes

Select this component when precise phase alignment is critical within the DC to 8 GHz band. Consider the 60 degrees per GHz adjustment granularity for fine-tuning applications. Verify that SMA connectors are suitable for your interconnect strategy. Evaluate if the adjustable nature fits your calibration workflow compared to fixed phase shifters.

Part Context

This part belongs to Pasternack's Adjustable Phase Shifters series, which are specialized for RF applications needing phase matching between cables. It falls under the broader category of Phase Detectors / Shifters and Wireless & RF Integrated Circuits, serving niche roles in high-frequency signal processing.

Replacement Considerations

Check for other models in the PE82P500x series with different frequency ranges or connector types. Compare with similar adjustable phase shifters offering different degrees per GHz rates. Ensure substitute parts maintain SMA connectivity and DC to 8 GHz operation if those specs are mandatory.

FAQ

What is the phase adjustment rate of the PE82P5006?

The PE82P5006 provides an adjustable phase shift of 60 degrees per GHz.

What connector type does the PE82P5006 use?

It uses SMA connectors.

Is the PE82P5006 suitable for radar applications?

Yes, it is ideal for radar applications where phase matching between two cables is required.
