PE82P5008

Overview

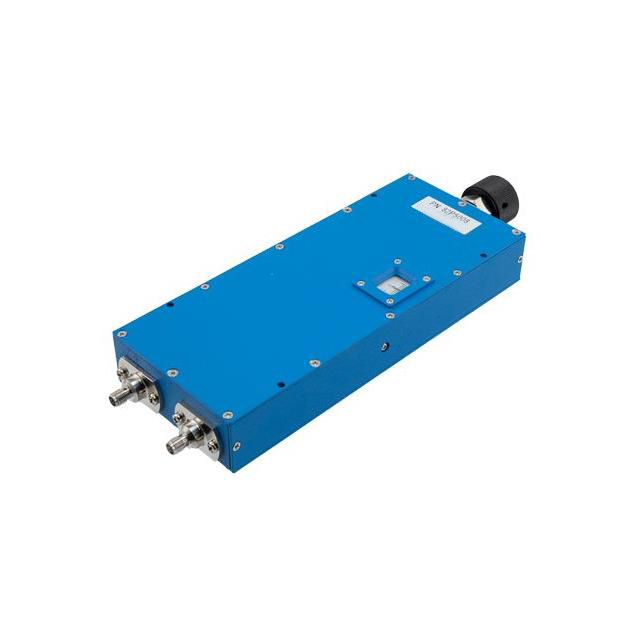

The PE82P5008 is an adjustable phase shifter manufactured by Pasternack, designed for radar applications within the RF and wireless integrated circuits category. It operates across a frequency range from DC to 4GHz. The device provides an adjustable phase shift capability of 90 degrees per GHz. It features SMA connectors for signal interfacing. The unit weighs approximately 612.349 grams and is packaged in bulk quantities. This component serves as a precision instrument for phase control in high-frequency electronic systems.

Feature Summary

• Provides continuous adjustable phase shifting functionality
• Operates effectively from DC up to 4GHz frequency range
• Utilizes SMA connector interface for reliable signal transmission

Applications

• Radar system phase adjustment
• Wireless communication signal processing
• RF test and measurement equipment calibration

Procurement Notes

Verify the specific SMA connector gender and mating requirements against your system interface before procurement. Confirm that the chassis mounting specifications align with your enclosure design constraints. Ensure environmental conditions meet the operational temperature ranges specified in the official datasheet. Cross-reference the RoHS compliance status with current regulatory standards applicable to your region. Validate the bulk packaging format against your storage and handling capabilities.

Selection Notes

Select this model when precise phase control within the 0-4GHz band is required for radar or wireless applications. Consider the 90 degrees per GHz adjustability rate for fine-tuning signal alignment. Evaluate the physical dimensions and weight relative to available chassis space. Compare connector types to ensure compatibility with existing SMA-based infrastructure. Assess thermal management needs based on the device's power dissipation characteristics documented in the technical specifications.

Part Context

This component belongs to the Adjustable Phase Shifters series under Pasternack's Wireless & RF Integrated Circuits portfolio. It complements other phase detectors and shifters in the manufacturer's lineup. The product is categorized specifically for radar use cases requiring stable phase performance. It represents a standard solution for analog phase manipulation in microwave frequencies.

Replacement Considerations

Consult the official Pasternack documentation for direct cross-references. Verify electrical equivalence regarding the 4GHz upper limit and 90 deg/GHz slope. Check mechanical compatibility for SMA interfaces and chassis mounting holes.
