PE82P5010

Overview

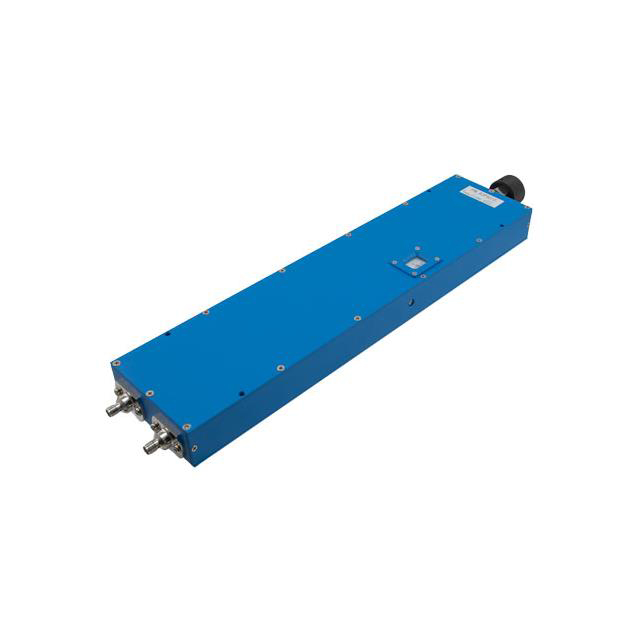

The Pasternack PE82P5010 is an adjustable phase shifter designed for RF applications. It operates over a frequency range of DC to 4 GHz. The device provides a phase adjustment capability of 180 degrees per GHz. It utilizes SMA connectors for interface connections.

Feature Summary

• Adjustable phase shift functionality with precision rotary control
• Wideband operation from DC to 4 GHz
• Phase adjustment range of 180 degrees per GHz

Applications

• Radar systems
• RF cable phase matching
• General RF circuit phase alignment

Procurement Notes

Verify the specific SMA connector gender and physical dimensions against your system requirements before integration. Confirm that the mechanical mounting style aligns with your assembly constraints. Ensure the operating environment remains within the specified thermal limits for long-term reliability. Check for any specific handling precautions related to the precision rotary mechanism during installation.

Selection Notes

Select this component when a continuous, analog phase adjustment is required across a broad bandwidth up to 4 GHz. It is suitable for applications needing precise phase trimming rather than digital step-wise shifting. Consider the physical size and manual adjustability as key factors compared to fixed or programmable alternatives.

Part Context

This part belongs to Pasternack's line of adjustable phase trimmers. These components are engineered for scenarios where phase matching between two cables or signal paths is critical. They serve as manual tuning elements in RF test setups and production calibration environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing SMA interfaces if considering alternative manufacturers.
