Product Detailed Parameters
- Description：PHASE SHIFTER: N F 0-2GHZ
- Series：-
- Mfr：Pasternack
- Package：Case
- Function：Phase Shifter, Trimmer
- Frequency：0Hz ~ 2GHz
- RF Type：Radar
- Secondary Attributes：60° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

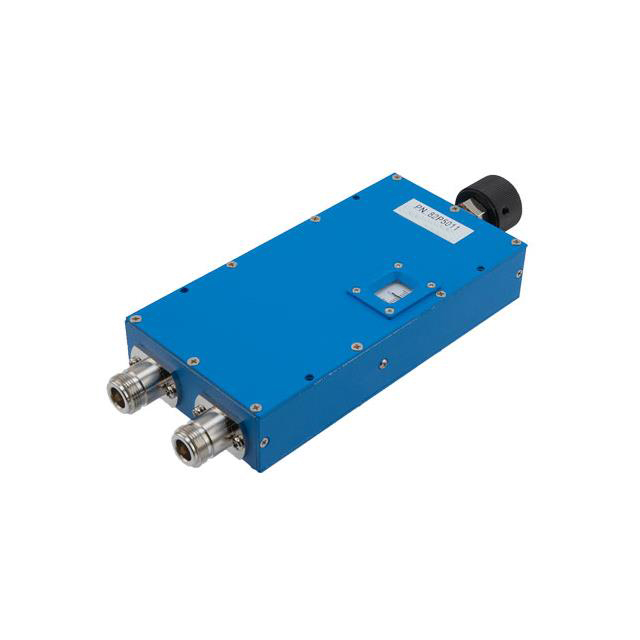

The PE82P5011 is an adjustable phase shifter manufactured by Pasternack, designed for radar applications. It operates within a frequency range of DC to 2 GHz. The device provides a phase adjustment capability of 60 degrees per GHz, allowing for precise signal control. It features N-type connectors for interfacing and includes a precision rotary dial for manual phase tuning. This component serves as both a phase shifter and a fine tuner in RF systems.
Feature Summary
- Adjustable phase shifting with a rate of 60 degrees per GHz across the operational bandwidth
- Equipped with N-type connectors for standard RF integration
- Includes a precision rotary dial for manual phase adjustment control
Applications
- Radar systems
- RF signal conditioning
- Phase trimming circuits
Procurement Notes
Verify the specific connector type and phase adjustment range against project requirements before ordering. Confirm that the DC to 2 GHz frequency range aligns with system specifications. Ensure compatibility with N-type interfaces. Check for any regional distribution restrictions or availability limitations through authorized channels prior to finalizing procurement plans.
Selection Notes
Select this component when manual phase adjustment is required within the DC to 2 GHz spectrum. It is suitable for applications needing a phase shift rate of 60 degrees per GHz. Consider the N-type connector interface for system integration. Evaluate the need for a precision rotary dial mechanism for fine-tuning capabilities in radar or RF testing environments.
Part Context
This part belongs to the Adjustable Phase Shifters series from Pasternack. It is categorized under Wireless & RF Integrated Circuits. The product is identified as a new item from the manufacturer. It is packaged in bulk quantities. The unit weight is approximately 635 grams. It falls under the subcategory of Wireless & RF Integrated Circuits.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Pasternack resources for potential alternatives if this specific model is unavailable.
