PE82P5012

Overview

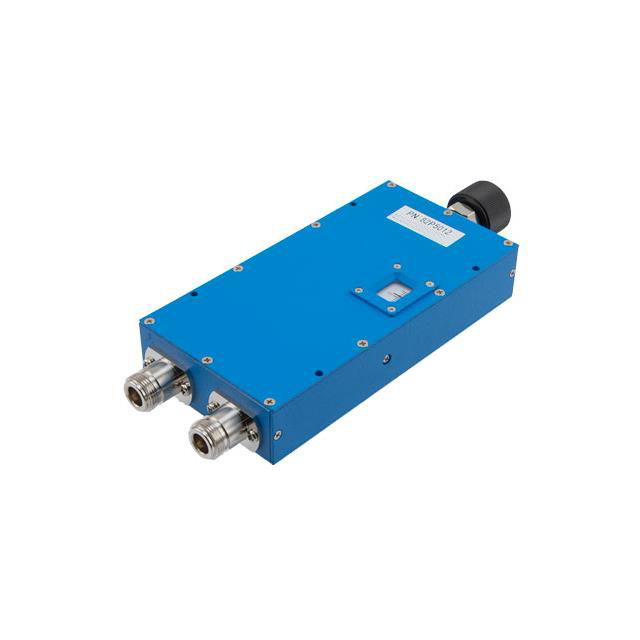

The Pasternack PE82P5012 is an adjustable RF phase shifter designed for radar and test applications. It operates across a frequency range of 0 Hz to 4 GHz. The device provides a fixed phase shift of 60 degrees per GHz, resulting in a total adjustable phase range up to 240 degrees at the upper frequency limit. It utilizes N-type female connectors for interfacing. This component serves as a fine tuner within RF signal chains, allowing precise phase alignment without digital control complexity.

Feature Summary

• Provides continuous phase adjustment capability across the specified bandwidth
• Delivers consistent phase shift performance relative to frequency increments
• Utilizes robust mechanical connector interface for secure RF connections

Applications

• Radar system phase calibration
• RF test and measurement equipment tuning
• Antenna array phase alignment

Procurement Notes

Verify the specific connector type required for your application, as datasheets may list variations such as SMA or N-type depending on the exact suffix or revision. Confirm the frequency range matches your operational needs, as some variants cover different bands. Ensure mechanical compatibility with existing mounting hardware before procurement.

Selection Notes

Select this component when a linear phase shift proportional to frequency is required rather than discrete digital steps. It is suitable for applications needing analog fine-tuning capabilities. Consider the connector type carefully to match system interfaces. Evaluate if the 60-degree-per-GHz characteristic aligns with your specific beamforming or delay requirements.

Part Context

This part belongs to Pasternack's family of RF phase shifters and tuners. These components are distinct from digital programmable shifters by offering analog adjustability. They are categorized under RF miscellaneous ICs and modules, serving niche roles in precision RF engineering where fixed or continuously variable phase control is necessary.

Replacement Considerations

Check for PE82P5006 if an SMA connector variant is needed instead of N-type. Verify if PE82P5019 is required for digital TTL programmable control instead of analog adjustment. Ensure substitute parts maintain the 0-4 GHz frequency range and similar phase shift characteristics.
