PE82P5016

Overview

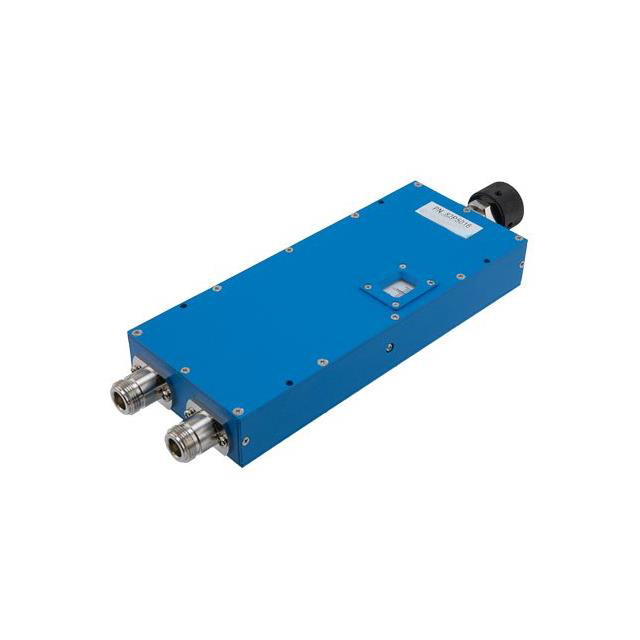

The Pasternack PE82P5016 is an adjustable analog phase shifter operating from DC to 8 GHz. It provides a total phase shift range of 0–720 degrees, achieving an adjustment rate of 90 degrees per GHz. The device utilizes N-type connectors for RF interfacing and is designed for precise phase control in wireless and RF integrated circuit applications.

Feature Summary

• Provides continuous analog phase adjustment across the specified frequency band
• Delivers high phase resolution with a linear adjustment rate of 90 degrees per GHz
• Supports wideband operation from DC up to 8 GHz

Applications

• Wireless communication systems requiring precise signal alignment
• RF test and measurement equipment calibration
• Phased array antenna beamforming networks

Procurement Notes

Verify the specific connector type and frequency range against your system requirements before ordering. Confirm that the 0-720 degree phase shift capability aligns with your design specifications. Ensure compatibility with N-type interfaces. Check current availability status as distribution may vary by region.

Selection Notes

Select this component when a wide bandwidth up to 8 GHz is required alongside fine phase resolution. The 90 degrees per GHz adjustment rate allows for significant phase tuning within the operational spectrum. Consider the N-type interface for standard RF connections.

Part Context

This model belongs to the Pasternack Adjustable Phase Shifters series, categorized under Wireless & RF Integrated Circuits. It serves as a specialized component for manipulating signal phase in high-frequency environments, distinct from fixed delay lines or digital phase shifters.

Replacement Considerations

Consult official documentation for direct substitutes. Similar models in the series include PE82P5015 (DC to 4 GHz) and PE82P5017 (DC to 4 GHz), though frequency ranges differ.
