PE82P5018

Overview

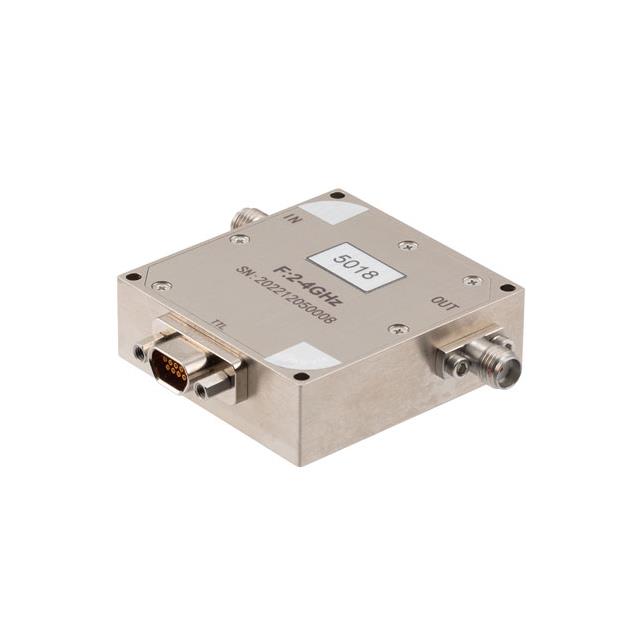

The PE82P5018 is a 6-bit TTL programmable phase shifter manufactured by Pasternack. It operates within a frequency range of 2 GHz to 4 GHz, providing a total phase range of 360 degrees. The device features a control step size of 5.625 degrees and supports a maximum input power of +27 dBm. It utilizes SMA connectors for RF interfacing and is designed for chassis mounting. The unit weighs approximately 63.5 grams and is packaged in bulk.

Feature Summary

• Digital TTL programmable control interface for precise phase adjustment
• Wideband operation covering 2 GHz to 4 GHz frequency spectrum
• High linearity with +27 dBm maximum input power handling capability

Applications

• Phased array antenna systems requiring digital beamforming control
• RF test and measurement equipment needing precise phase calibration
• Wireless communication infrastructure components

Procurement Notes

Verify the specific datasheet version for the PE82P5018 to confirm current manufacturing status and detailed electrical specifications. Ensure that the TTL logic levels match the system interface requirements. Confirm mechanical dimensions for chassis mounting compatibility before integration into the final assembly design.

Selection Notes

Select this component when a fully digital, TTL-compatible phase shift solution is required for the 2-4 GHz band. The 6-bit resolution provides fine phase control suitable for high-performance applications. Consider the chassis mount form factor if space constraints allow for larger modules compared to surface-mount alternatives.

Part Context

This part belongs to Pasternack's Digital TTL Programmable Phase Shifters series. It falls under the broader category of Wireless & RF Integrated Circuits, specifically Phase Detectors/Shifters. The product is identified as a new item from the manufacturer, indicating recent availability or introduction to the portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the official datasheet for direct replacements or contact the manufacturer for cross-reference information.
