PE82P5019

Overview

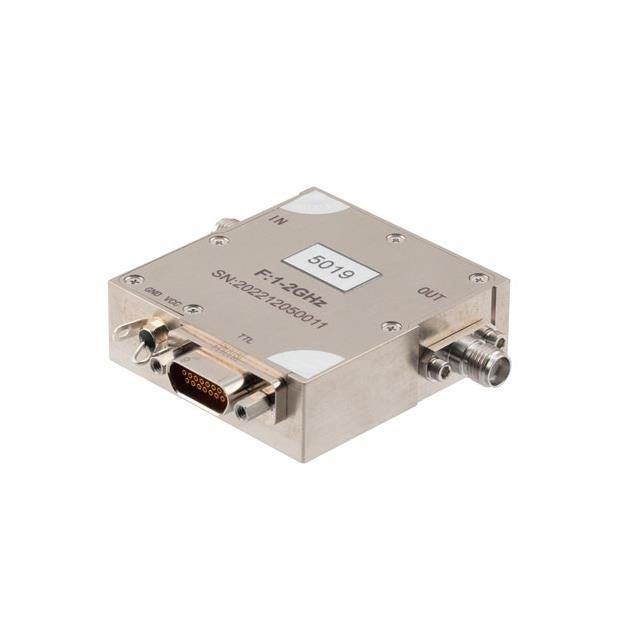

The PE82P5019 is a 6-bit TTL programmable phase shifter manufactured by Pasternack. It operates within a frequency range of 1 GHz to 2 GHz and provides a total phase adjustment range of 360 degrees. The device features a control step size of 5.625 degrees, allowing for precise phase manipulation. It supports a maximum input power level of +27 dBm at the PIN port. The component utilizes SMA connectors for RF interfacing and accepts TTL logic levels for digital control inputs.

Feature Summary

• Digital TTL programmable architecture for direct logic interface
• Full 360-degree continuous phase coverage across the operating band
• High-resolution phase control with defined step increments
• Robust power handling capability for signal integrity

Applications

• Phased array antenna beam steering systems
• RF test and measurement instrumentation
• Wireless communication system calibration
• Signal processing network phase alignment

Procurement Notes

Verify the specific connector type and pinout configuration against your schematic before integration. Confirm that the TTL voltage levels match your controller outputs. Ensure the operating environment remains within the specified temperature range. Check for any updated mechanical drawings or ECAD models from the manufacturer to guarantee physical compatibility with your enclosure design.

Selection Notes

Select this component when a fully digital, programmable solution is required for the 1-2 GHz band. It is suitable for applications demanding high phase resolution and wide dynamic range. Consider the insertion loss characteristics relative to your link budget. Evaluate the physical footprint and SMA connector requirements against your board layout constraints.

Part Context

This part belongs to Pasternack's series of digital TTL programmable phase shifters. These components are designed for RF and microwave applications requiring precise, digitally controlled phase adjustments. The series typically offers various frequency ranges and bit resolutions to suit different system complexity levels and performance requirements.

Replacement Considerations

Consult official datasheets for compatible alternatives within the same product family. Verify that substitute parts maintain identical TTL logic interfaces and SMA connector standards. Ensure replacement components offer equal or superior phase resolution and power handling capabilities for seamless system integration.
