PE82P5021

Overview

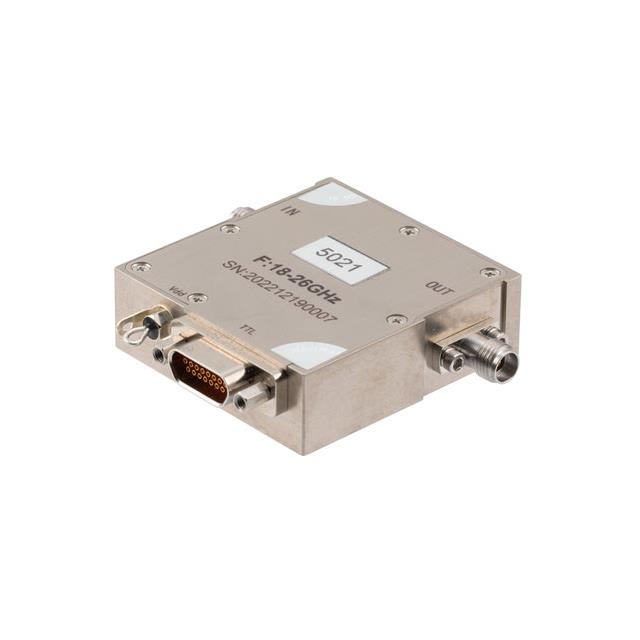

The PE82P5021 is a 6-bit TTL programmable phase shifter manufactured by Pasternack. It operates within the 18 GHz to 26 GHz frequency range, providing a full 360-degree phase shift capability with an 11.25-degree control step size. The device features a 2.92mm coaxial interface and supports a maximum input power of +20 dBm. Designed for chassis mounting, it utilizes digital TTL logic for precise phase control in high-frequency RF applications.

Feature Summary

• Provides 6-bit digital phase shifting via TTL programmable control
• Delivers continuous 360-degree phase range with fine resolution
• Engineered for high-power handling up to +20 dBm input
• Utilizes robust 2.92mm coaxial connector interface

Applications

• Phased array antenna beam steering systems
• Microwave test and measurement instrumentation
• Satellite communication ground stations
• Radar signal processing architectures

Procurement Notes

Verify the specific datasheet version for exact insertion loss and VSWR tolerances before integration. Confirm that the TTL voltage levels match your system logic. Ensure chassis mounting provisions align with your enclosure design. Check for any regional distribution restrictions or limited availability status prior to finalizing procurement plans.

Selection Notes

Select this component when a wideband 18-26 GHz phase shift is required with digital control precision. The 6-bit resolution offers a balance between control granularity and complexity. Consider the 2.92mm interface compatibility with existing RF infrastructure. Evaluate the thermal management requirements associated with chassis mounting and high-power operation at these frequencies.

Part Context

This unit belongs to Pasternack's Digital TTL Programmable Phase Shifters series. It is categorized under Wireless & RF Integrated Circuits. The product is identified as a new item from the manufacturer. It is designed for general-purpose RF applications requiring precise phase manipulation in microwave bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify interface compatibility and electrical specifications if considering alternative manufacturers. Consult official Pasternack catalogs for potential family replacements.
