PE82P5022

Overview

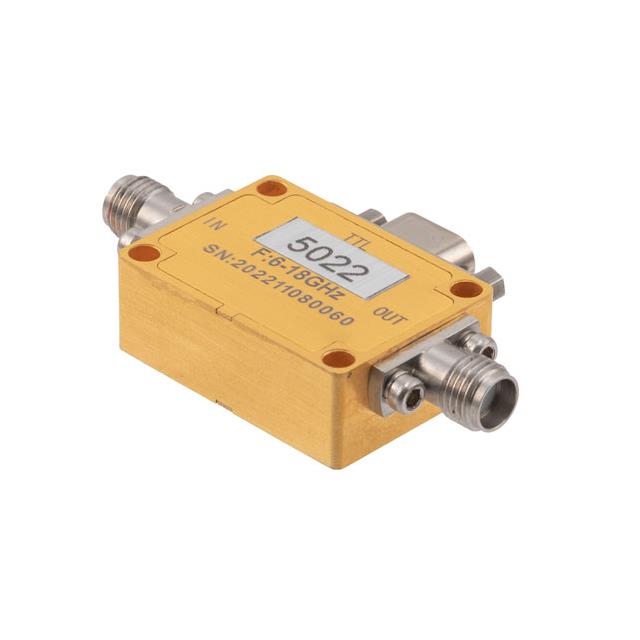

The Pasternack PE82P5022 is a 6-bit TTL programmable phase shifter operating within the 6 GHz to 18 GHz frequency range. It provides a full 360-degree phase adjustment capability with a control step size of 5.625 degrees. The device features SMA connectors and supports a maximum input power of +30 dBm. Designed for digital control applications, it integrates phase detection and shifting functions into a compact module suitable for high-frequency RF systems requiring precise signal phase manipulation.

Feature Summary

• Digital TTL programmable interface for direct logic control
• Continuous 360-degree phase coverage across wide bandwidth
• High linearity handling up to +30 dBm input power

Applications

• Phased array antenna beam steering systems
• RF test and measurement instrumentation
• Wireless communication base station transceivers

Procurement Notes

Verify the specific datasheet revision for the PE82P5022 to confirm pinout compatibility and electrical tolerances. Ensure that the host system provides stable TTL logic levels matching the component specifications. Confirm connector integrity and mating cycle ratings if repeated assembly is required for prototype testing or production integration.

Selection Notes

Select this model when a wide operational bandwidth from 6 GHz to 18 GHz is required alongside precise digital phase control. The 5.625-degree resolution suits applications demanding fine-grained beamforming adjustments. Compare against the PE82P5023 if operation in the lower 8-12 GHz band is sufficient, as the PE82P5022 offers broader frequency coverage for multi-band systems.

Part Context

This component belongs to Pasternack's Digital TTL Programmable Phase Shifters series. It serves as an active RF integrated circuit designed to replace discrete phase shifting networks. The module simplifies system design by integrating multiple phase shift stages into a single package controlled via standard digital interfaces.

Replacement Considerations

The PE82P5023 is a documented substitute offering similar functionality but restricted to the 8 GHz to 12 GHz range. Verify frequency requirements before substitution, as the PE82P5022 covers 6 GHz to 18 GHz. Both parts share the same 6-bit TTL control scheme and SMA connector type.
