PE82P5024

Overview

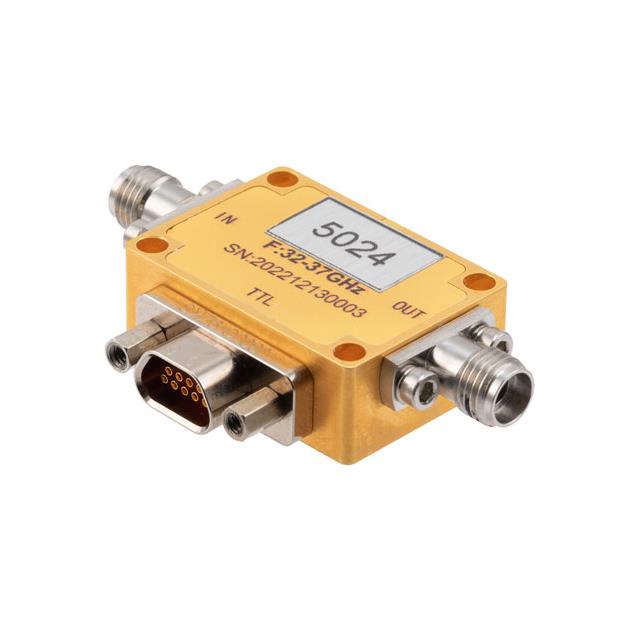

The Pasternack PE82P5024 is a 5-bit TTL programmable phase shifter designed for the 32 GHz to 37 GHz frequency range. It provides a full 360-degree phase shift capability with a precise control step size of 5.625 degrees. The device supports a maximum input power of +30 dBm and utilizes a 2.92mm connector interface. This component belongs to the Digital TTL Programmable Phase Shifters series, offering reliable phase control for high-frequency RF applications requiring digital logic compatibility.

Feature Summary

• Provides 5-bit digital phase control via TTL logic inputs
• Delivers continuous 360-degree phase shift range across the operating band
• Engineered for millimeter-wave frequencies between 32 GHz and 37 GHz
• Features robust handling of up to +30 dBm maximum input power

Applications

• Millimeter-wave radar systems
• Satellite communication terminals
• Wireless test and measurement equipment
• Beamforming antenna arrays

Procurement Notes

Verify the specific connector type and mounting configuration against system requirements before ordering. Confirm that the TTL voltage levels match the controlling logic family. Ensure the operating environment remains within the specified temperature and power limits to maintain phase accuracy and device longevity.

Selection Notes

Select this model when a 5-bit resolution is sufficient for the required phase adjustment precision in the 32-37 GHz band. Consider the 2.92mm interface compatibility with existing cabling infrastructure. Evaluate if the +30 dBm power rating aligns with the maximum signal levels present in the signal chain to prevent damage or non-linear performance.

Part Context

This component is part of Pasternack's Digital TTL Programmable Phase Shifters subcategory under Wireless & RF Integrated Circuits. It serves as a specialized module for precise phase manipulation in high-frequency circuits, distinct from variable attenuators or general-purpose amplifiers within the same product portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify electrical compatibility and mechanical fit if sourcing alternatives from other manufacturers.
