Product Detailed Parameters
- Description：SMA Calibrated Noise Source Modu
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Noise Source
- Frequency：10kHz ~ 2GHz
- RF Type：ATE, Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

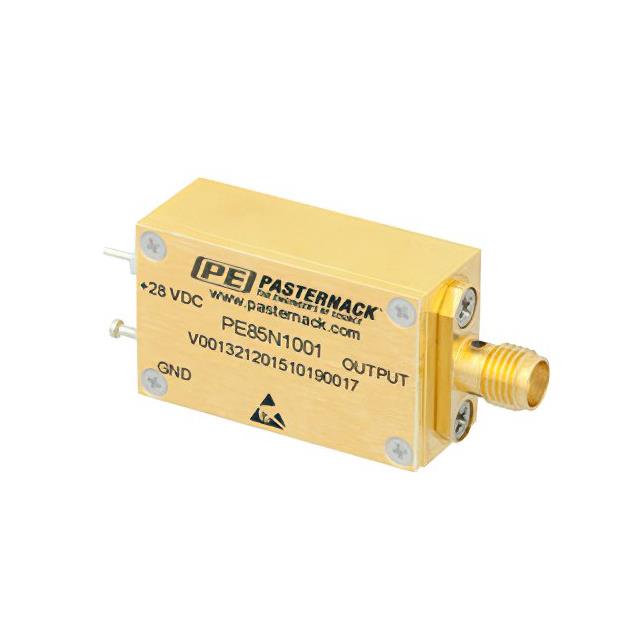

The Pasternack PE85N1001 is an SMA calibrated noise source module designed for radio frequency applications. It operates within a frequency range of 0.01 MHz to 2 GHz and provides an excess noise ratio (ENR) output of 30 dB. The device requires a +28 VDC power supply for operation. Constructed with SMA connectors, this module serves as a precise RF noise generator manufactured to strict component standards.
Feature Summary
- Provides calibrated noise generation for RF testing
- Features SMA connector interface
- Operates on standard DC voltage supply
Applications
- Automatic Test Equipment (ATE)
- Radar system testing
- RF receiver sensitivity measurement
Procurement Notes
Verify the specific datasheet version for the PE85N1001 to confirm exact electrical tolerances and connector specifications. Ensure compatibility with +28 VDC power supplies in the target system. Cross-reference manufacturer documentation for any updates regarding calibration certificates or environmental operating limits before integration into final designs.
Selection Notes
Select the PE85N1001 when a calibrated noise source is required for frequencies up to 2 GHz. This model is suitable for applications needing a 30 dB ENR output. Compare against other Pasternack models like the PE85N1003 if higher frequency coverage beyond 6 GHz is necessary. Confirm that the SMA interface matches existing test fixtures.
Part Context
This component belongs to the calibrated RF noise source generators series from Pasternack. These modules are engineered for precision in wireless and RF testing environments. The product line includes various models with different frequency ranges and ENR values to suit diverse measurement requirements across radar and communication systems.
Replacement Considerations
The PE85N1003 is a related model offering a 10 MHz to 6 GHz range with 26 dB ENR. Verify if the extended frequency range or different ENR level meets application needs. No direct cross-manufacturer substitutes are confirmed in public documentation.
