Product Detailed Parameters
- Description：3.5mm Precision Calibrated Noise
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Noise Source
- Frequency：10MHz ~ 26GHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

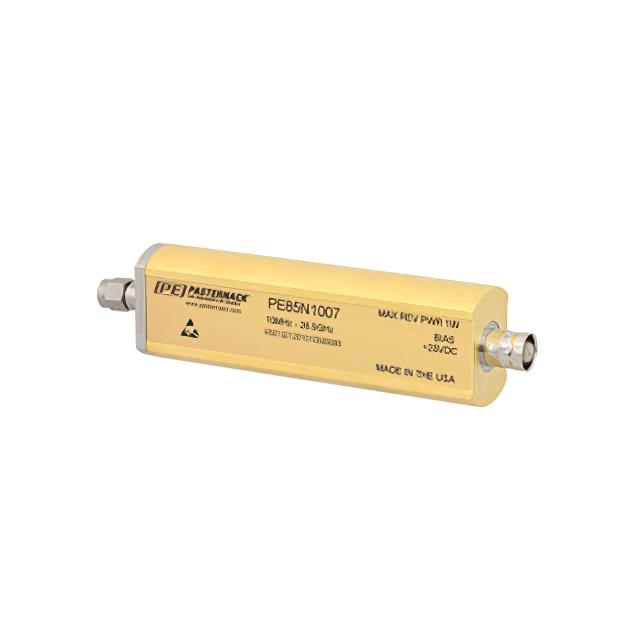

The PE85N1007 is a calibrated RF noise source module manufactured by Pasternack. It operates within a frequency range of 10 MHz to 26 GHz and features SMA connectors. The device provides a Noise Equivalent Power (ENR) output of 17 dB at 50 Ohms impedance. Designed for radar applications, it functions as a precision signal generator component suitable for testing and instrumentation environments requiring stable noise reference signals across microwave frequencies.
Feature Summary
- Provides calibrated noise output with specified ENR levels
- Operates across wide frequency spectrum from 10 MHz to 26 GHz
- Utilizes SMA connector interfaces for integration
Applications
- Radar system testing
- RF component characterization
- Noise figure measurement setups
Procurement Notes
Verify the specific datasheet version to confirm electrical tolerances and connector specifications. Ensure compatibility with existing test equipment interfaces. Check for any recent updates regarding RoHS compliance status or manufacturing changes. Confirm that the 17 dB ENR specification meets the requirements of your specific application environment before finalizing procurement decisions.
Selection Notes
Select this model when a broad frequency coverage up to 26 GHz is required for noise source applications. The 17 dB ENR level suits standard radar and receiver testing needs. Consider the SMA interface compatibility with your current setup. This unit is appropriate for laboratory environments requiring precise, calibrated noise references for accurate signal analysis and component validation.
Part Context
This component belongs to Pasternack's RF IC Noise Source and Modules category. It is designed for use in radar and general RF testing scenarios. The module serves as a critical reference signal generator, enabling engineers to evaluate system performance and sensitivity. It represents a specialized solution for microwave frequency analysis and calibration tasks.
Replacement Considerations
Consult official documentation for direct substitutes. Verify frequency range and ENR specifications match requirements. Ensure connector type compatibility. Check manufacturer availability for alternative part numbers within the same series.
