PE85N1016

Overview

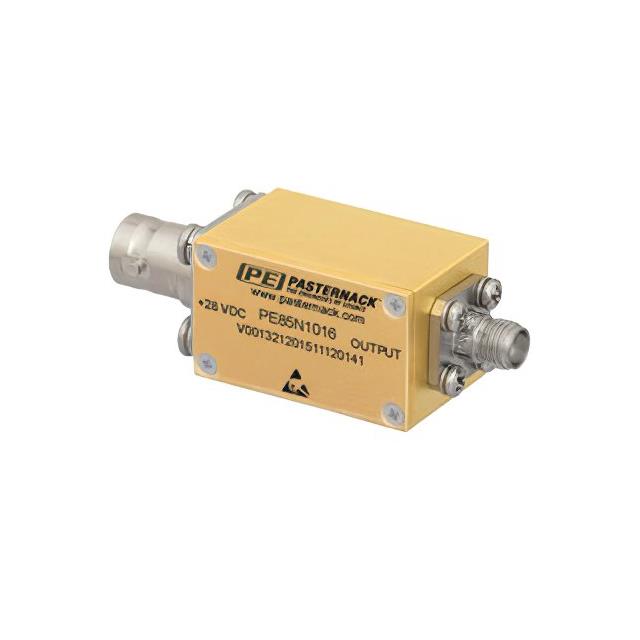

The Pasternack PE85N1016 is a calibrated RF noise source module designed for the 10.7 GHz to 12.7 GHz frequency range. It features an integral isolator and SMA connectors for reliable signal integrity. The device operates on +28 VDC power and provides a consistent Excess Noise Ratio (ENR) of 30 dB. This component serves as a precision reference generator in radio frequency testing environments.

Feature Summary

• Calibrated noise generation with integral isolator
• SMA connector interface for standard RF integration
• Fixed 30 dB ENR output specification

Applications

• RF receiver sensitivity testing
• Noise figure measurement systems
• Satellite communication equipment calibration

Procurement Notes

Verify the specific datasheet version from Pasternack Enterprises, Inc. to confirm mechanical dimensions and electrical tolerances. Ensure the +28 VDC supply matches system requirements. Confirm SMA connector gender and polarity before integration into test fixtures.

Selection Notes

Select this module when a stable 30 dB ENR reference is required within the 10.7–12.7 GHz band. The integral isolator simplifies design by reducing reflection sensitivity. Compare against other Pasternack noise sources if different frequency ranges or ENR levels are needed.

Part Context

This part belongs to Pasternack's line of RF modules and noise source generators. It complements their broader portfolio of microwave components, adapters, and attenuators. The module is engineered to meet precise radio frequency component standards for industrial and telecommunications applications.

Replacement Considerations

Check Pasternack datasheets for alternative models such as the PE85N1010 if lower frequency coverage (0.1–500 MHz) is sufficient. Verify that substitute parts maintain compatible SMA interfaces and voltage requirements.
