PE85N1017

Overview

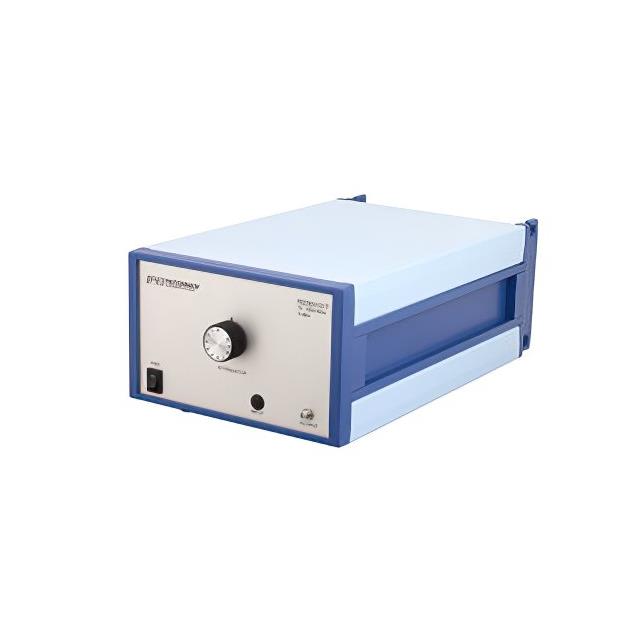

The PE85N1017 is a calibrated noise source module manufactured by Pasternack, designed for bench-top applications. It operates within a frequency range of 1 MHz to 2 GHz and utilizes SMA connectors for signal interfacing. The device provides an output power (Pout) of 0 dBm. Power requirements are specified as +120 VAC in some documentation, while other sources indicate +28 VDC operation. This component functions as a radio frequency noise generator intended for precise testing scenarios.

Feature Summary

• Provides calibrated RF noise generation for testing purposes
• Features SMA connector interface for signal connection
• Designed for bench-top deployment in laboratory environments

Applications

• RF component testing
• Receiver sensitivity measurement
• Noise figure analysis

Procurement Notes

Verify the specific power supply requirement (+120 VAC or +28 VDC) against the manufacturer's official datasheet prior to procurement, as conflicting specifications appear across different distributor listings. Confirm that the SMA connector type matches system integration needs. Ensure the unit is sourced from authorized channels to guarantee calibration integrity and compliance with stated performance standards.

Selection Notes

Select this model when a calibrated noise source covering the 1 MHz to 2 GHz range is required for bench-top testing. Consider the 0 dBm output power level relative to test equipment input limits. Evaluate the physical form factor for workspace compatibility. Verify electrical interface compatibility with existing SMA-based test setups before finalizing the selection.

Part Context

This component belongs to Pasternack's portfolio of RF modules and miscellaneous ICs. It serves as a specialized tool for characterizing radio frequency systems. The product is categorized under CATV RF types in some databases, indicating potential relevance to cable television infrastructure testing. It represents a dedicated solution for generating known noise levels in controlled environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-reference with Pasternack's current catalog for equivalent noise source models if availability is an issue.
