PE85N1021

Overview

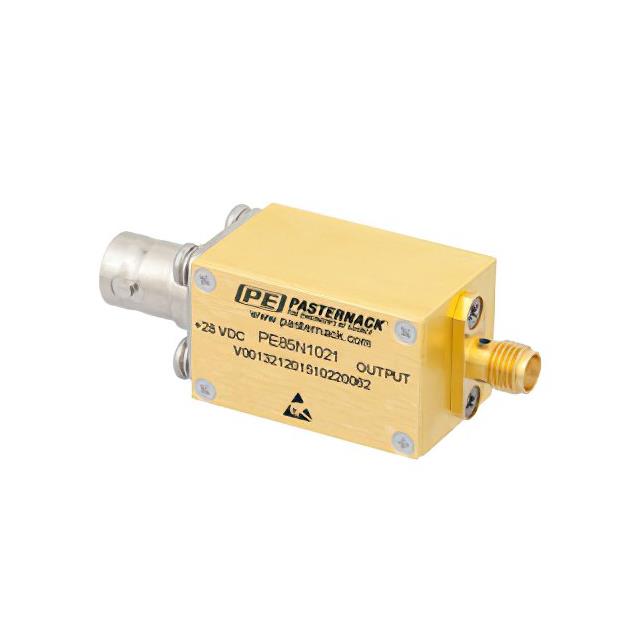

The PE85N1021 is a calibrated noise source module manufactured by Pasternack Enterprises. It operates within a frequency range of 10 MHz to 6 GHz and provides a Noise Equivalent Ratio (ENR) output of 15 dB. The device features SMA connectors for interface connectivity and is designed for medium power applications with a 50 Ohm impedance rating. This component is intended for use in radar systems and general RF testing environments, offering stable signal generation capabilities across its specified bandwidth.

Feature Summary

• Provides calibrated noise signal generation for RF system testing
• Features SMA connector interfaces for secure attachment
• Designed for operation within radar and instrumentation applications

Applications

• Radar system testing and calibration
• RF measurement instrumentation
• General-purpose telecommunications equipment testing

Procurement Notes

Verify the specific datasheet version when sourcing this component, as manufacturer documentation may be hosted by various distributors. Confirm that the received unit matches the PE85N1021 designation and includes the correct SMA connector configuration. Ensure compatibility with the required 50 Ohm system impedance and validate the ENR specifications against project requirements before integration into test setups.

Selection Notes

Select this module when a calibrated noise source with a 15 dB ENR is required for frequencies up to 6 GHz. The SMA interface makes it suitable for standard RF test benches. Consider the medium power rating and active lifecycle status when planning long-term deployment. Compare against other models in the PE85N series if different ENR levels or connector types are needed for specific application constraints.

Part Context

This component belongs to the PE85N series of noise source modules from Pasternack Enterprises. The series includes variants such as PE85N1001 and PE85N1002, which offer different ENR outputs and frequency ranges. These modules are part of a broader portfolio of microwave and RF components designed for reliable signal transmission and testing in communication systems.

Replacement Considerations

The PE85N1002 is a documented alternative within the same product family, offering a similar 15 dB ENR but potentially differing in specific operational parameters. Verify interface compatibility and frequency coverage when substituting. No other direct substitute part numbers are confirmed in public documentation.
