Product Detailed Parameters
- Description：24 Pin DIP Packaged Noise Source
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Noise Source
- Frequency：10MHz ~ 2GHz
- RF Type：General Purpose
- Secondary Attributes：15V Supply
- Mounting Type：Through Hole
- Package / Case：24-DIP Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

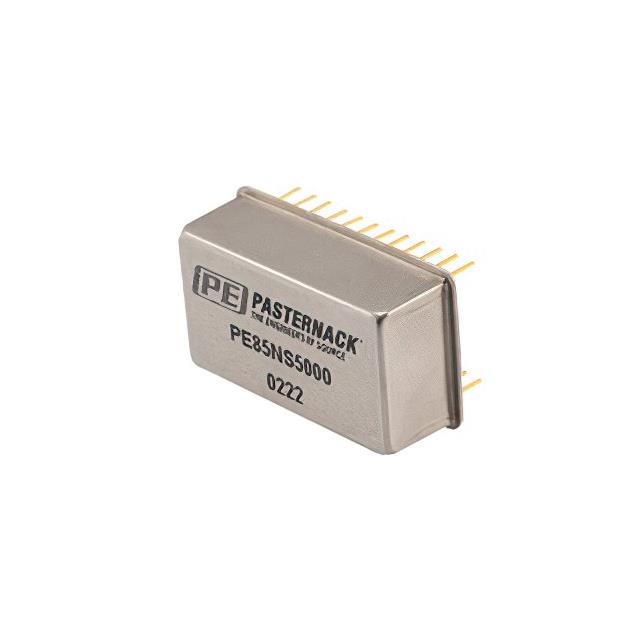

The PE85NS5000 is a dual in-line packaged (DIP) noise source module manufactured by Pasternack. It operates within a frequency range of 10 MHz to 2 GHz and delivers an output power of -5 dBm. The device requires a +15 VDC supply voltage for operation. It exhibits a flatness specification of ±2 dB across its operational bandwidth. This component is designed for general-purpose RF applications requiring stable noise generation.
Feature Summary
- Dual in-line package (DIP) configuration for standard mounting
- Operates over a wide frequency range from 10 MHz to 2 GHz
- Provides consistent output power with specified flatness characteristics
Applications
- Noise figure measurement of low-noise amplifiers
- Y-factor method calibration for receiver systems
- General-purpose RF test and measurement setups
Procurement Notes
Verify the specific DIP pinout and mechanical dimensions against the official datasheet before integration. Confirm that the required +15 VDC supply voltage aligns with your system design constraints. Ensure the operating frequency range covers your specific application requirements. Check for any environmental specifications if deployment occurs outside standard laboratory conditions.
Selection Notes
Select this module when a broadband noise source covering up to 2 GHz is required. The DIP packaging facilitates easy insertion into test fixtures or custom PCB designs. Consider the -5 dBm output level relative to the sensitivity of the device under test. Verify compatibility with Y-factor noise figure analyzer software if automated measurements are planned.
Part Context
This component belongs to Pasternack's portfolio of microwave and RF test components. Noise sources like the PE85NS5000 are essential tools for characterizing the performance of sensitive RF front-ends. They provide a known excess noise ratio reference, enabling accurate determination of system noise figures in engineering laboratories and production environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. When seeking alternatives, ensure the replacement matches the 10 MHz to 2 GHz frequency range, -5 dBm output power, and +15 VDC supply requirement. Verify that the DIP package form factor remains compatible with existing hardware.
