PE85NS5001

Overview

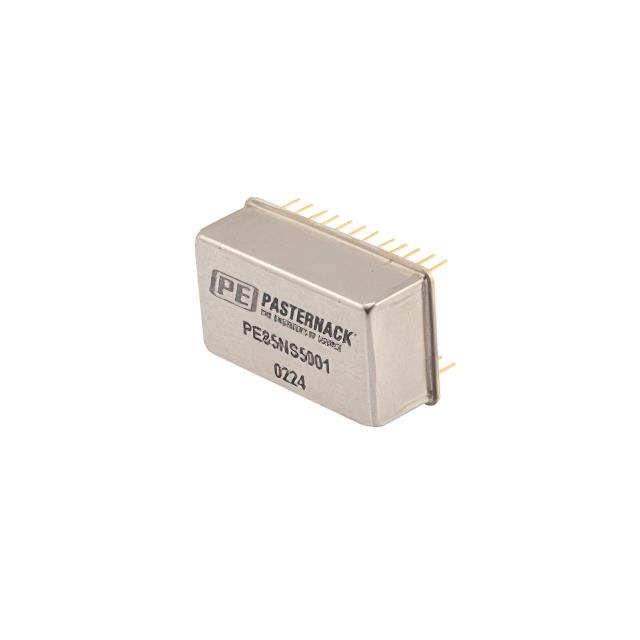

The Pasternack PE85NS5001 is a general-purpose RF noise source module designed for frequency ranges from 10 MHz to 3 GHz. It operates with a 15V supply and features a through-hole mounting type. The component is packaged in a 24-pin DIP configuration, providing a standardized interface for integration into test and measurement systems requiring broadband noise generation.

Feature Summary

• Broadband noise generation capability spanning 10 MHz to 3 GHz
• Integrated -5 dBm output power specification
• Standardized 24-pin DIP packaging for easy circuit board integration

Applications

• General-purpose RF testing equipment
• Instrumentation systems requiring noise calibration
• Telecommunications signal analysis setups

Procurement Notes

Verify the specific package variant upon ordering, as sources indicate both 14-pin and 24-pin DIP configurations exist within the PE85NS series. Confirm the exact frequency upper limit (2 GHz vs 3 GHz) matches the system requirement before procurement to ensure functional compatibility.

Selection Notes

Select this model when a wide bandwidth up to 3 GHz is required for noise figure measurements or receiver sensitivity testing. Ensure the design accommodates the +15 VDC supply voltage and the physical footprint of the 24-pin DIP package within the target instrumentation enclosure.

Part Context

This component belongs to the Pasternack RF Modules category, specifically designed as a noise source. It complements other series items like the PE85NS5002, which offers a narrower 10 MHz to 2 GHz range, allowing engineers to choose based on specific spectral coverage needs.

Replacement Considerations

The PE85NS5002 serves as a related alternative but covers only 10 MHz to 2 GHz. Verify if the extended 3 GHz bandwidth of the PE85NS5001 is critical for the application before substituting.
