Product Detailed Parameters
- Description：14 Pin DIP Packaged Noise Source
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Noise Source
- Frequency：10MHz ~ 2GHz
- RF Type：General Purpose
- Secondary Attributes：15V Supply
- Mounting Type：Through Hole
- Package / Case：14-DIP Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

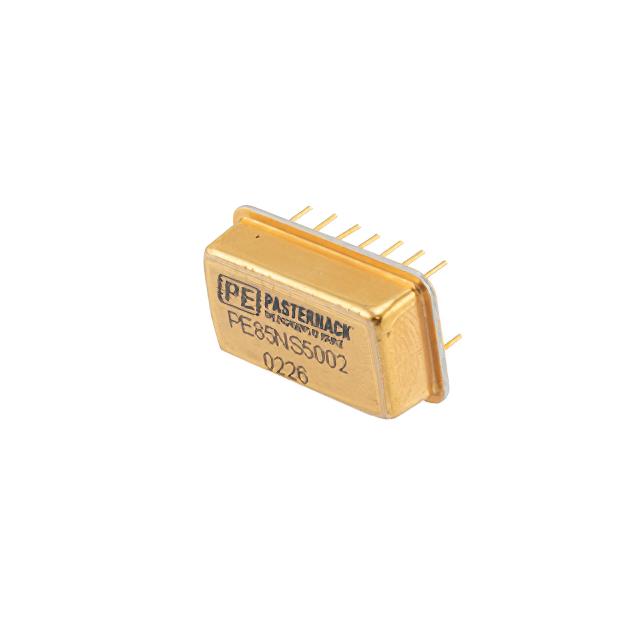

The PE85NS5002 is a noise source module manufactured by Pasternack, designed for RF applications. It operates within a frequency range of 10 MHz to 2 GHz and features a dual in-line package (DIP) with 14 pins. The module delivers an output power (Pout) of -5 dBm and requires a +15 VDC supply voltage. This component serves as a general-purpose RF IC suitable for test and measurement environments requiring stable noise generation across the specified bandwidth.
Feature Summary
- Dual in-line packaged (DIP) construction with 14-pin configuration
- Operates as a general-purpose noise source module
- Provides consistent output power across a wide frequency spectrum
Applications
- RF signal testing and measurement
- Noise figure analysis in receiver systems
- Calibration of RF instrumentation equipment
Procurement Notes
Verify the specific datasheet version from Pasternack or authorized distributors to confirm pinout compatibility and electrical tolerances. Ensure that the +15 VDC supply requirements are met within your system design. Confirm that the 14-pin DIP package fits your PCB layout constraints before finalizing procurement decisions.
Selection Notes
Select this module when a broad frequency coverage from 10 MHz to 2 GHz is required for noise source applications. Consider the 14-pin DIP form factor for through-hole mounting needs. Evaluate the -5 dBm output level against your system's input sensitivity requirements to ensure adequate signal strength for accurate measurements.
Part Context
This component belongs to Pasternack's family of RF noise source modules, which provide standardized noise generation for various electronic testing scenarios. The PE85NS5002 specifically targets applications needing reliable performance up to 2 GHz, distinguishing it from lower-frequency or narrower-bandwidth alternatives in the manufacturer's portfolio.
Replacement Considerations
The PE85NS5003 is a documented substitute offering extended frequency coverage up to 3 GHz while maintaining similar operational characteristics. Verify interface compatibility and thermal requirements when considering alternative models from other manufacturers.
