Product Detailed Parameters
- Description：2x Frequency Multiplier Module,
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Frequency Multiplier
- Frequency：2GHz ~ 6GHz, 4GHz ~ 12GHz
- RF Type：VSAT
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

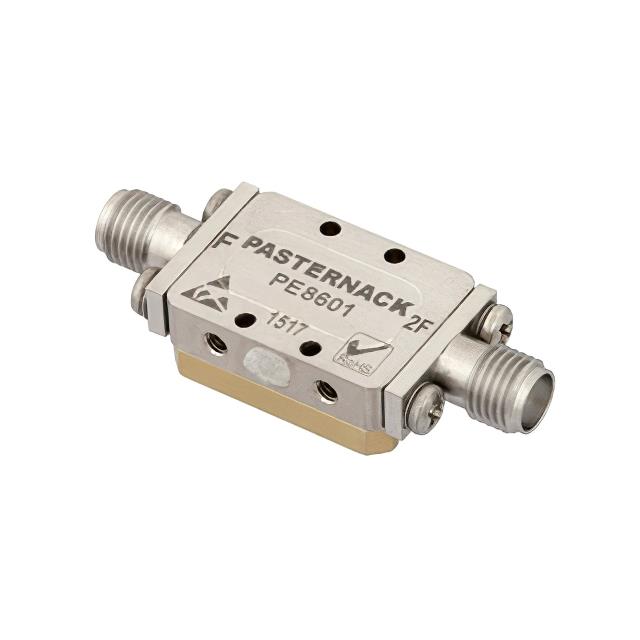

The Pasternack PE8601 is a 50 Ohm SMA frequency doubler module designed for VSAT applications. It accepts an input signal ranging from 2 GHz to 6 GHz and produces an output at double the frequency, spanning 4 GHz to 12 GHz. The device features SMA connectors for interface connectivity. It is currently listed as an active product with a standard lead time of five weeks.
Feature Summary
- Functions as a frequency multiplier specifically configured for doubling input signals
- Utilizes SMA connectors for standardized RF interfacing
- Engineered for use in VSAT communication systems
Applications
- VSAT communication systems
- RF signal generation circuits requiring frequency doubling
- Test and measurement equipment operating in microwave bands
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer documentation may be updated. Confirm that the required input frequency range falls within the 2 GHz to 6 GHz specification to ensure proper operation. Check current availability status, as lead times can vary based on production schedules and supply chain conditions.
Selection Notes
Select this component when a dedicated frequency doubling function is required between 2 GHz and 6 GHz inputs. Ensure the system design accommodates the resulting 4 GHz to 12 GHz output spectrum. Verify that SMA connector compatibility matches the existing board layout or cable assembly requirements for seamless integration into the RF chain.
Part Context
This module belongs to Pasternack's portfolio of RF ICs and modules, specifically targeting frequency multiplication needs. It complements other RF components like adapters and cables by providing active signal processing capabilities. The product is distinct from passive interconnects, offering active conversion functionality for specialized wireless applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Pasternack resources for potential cross-reference options or newer generation equivalents if this specific model becomes obsolete.
